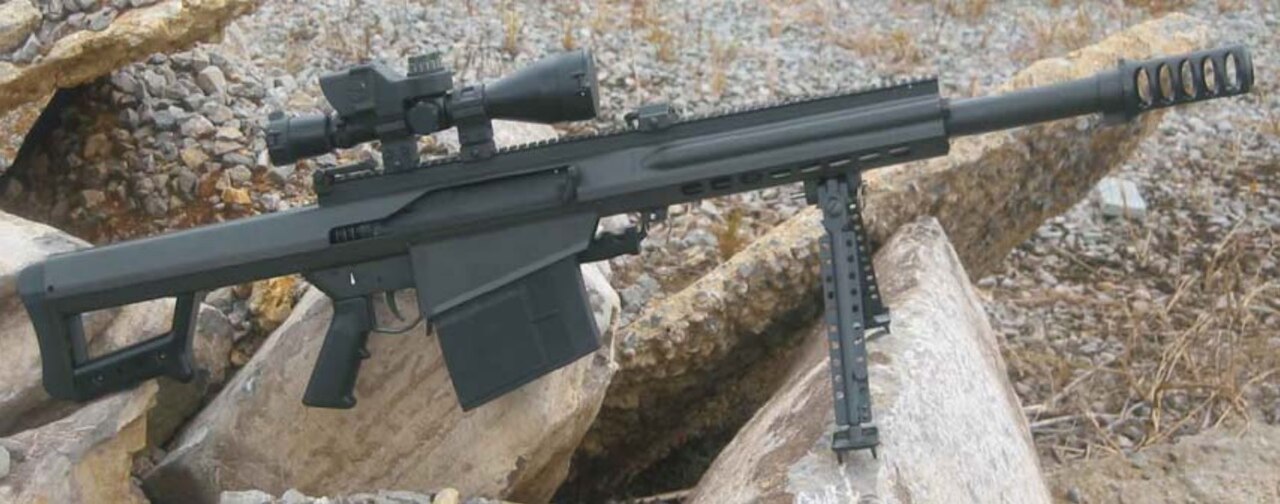

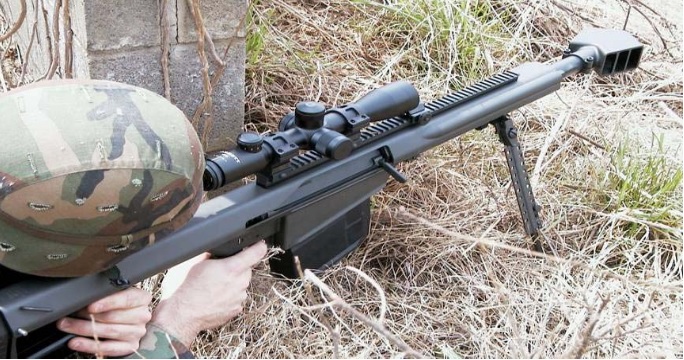

Barrett XM109

Lore & Background

Prototypes of the XM109 have existed since the late 1990s, and studies of the weapon's effectiveness were released in 2002. By 2004, 10 prototypes were known to exist. The XM109 and the Barrett XM500 were folded into a broader Anti-Material Rifle Congressional Program in 2006. As of April 2026, the status of the XM109 is not clear, with no news of either cancellation or potential adoption.

The design uses the lower receiver from an M82/M107, but with a new upper receiver chambered in 25 mm. The upper receiver of the M82 rifles can be replaced with an XM109 upper receiver to form a fully functional XM109 rifle. The 25 × 59 mm round used in the XM109 is the same one originally developed for the cancelled XM307, product of the Objective (later Advanced) Crew Served Weapon program. As with the XM307, the XM109 can be reconfigured back to .50 BMG by swapping the 25 mm upper receiver for a standard M82/M107 upper.

The XM109 offers greater range and a shorter overall length than the previous M82/M107 systems, as well as potentially greater power in the 25 × 59 mm cartridge over even the Mk 211 .50 BMG cartridge. However, the small amount of propellant and heavy projectile resulted in unacceptably high recoil due to limiting the effects of the weapon's muzzle brake, with a recoil force of over 60 foot-pounds compared to 36 for the M107. As of 2004, one of the project goals was to reduce the weapon's recoil.

Reader's Guide

The Barrett XM109 represents an attempt to extend the anti-materiel rifle concept into a grenade-launching platform, using a 25 × 59 mm round originally developed for a crew-served weapon program. Its ability to defeat light armor and equipment at 2 km placed it in a niche between traditional sniper rifles and heavier ordnance. The weapon's design leveraged existing M82/M107 components, allowing conversion between calibers by swapping upper receivers. Despite its potential advantages in range and power over the .50 BMG M107, the XM109 suffered from excessive recoil—over 60 foot-pounds—which became a key development challenge. The program was merged with the Barrett XM500 into a broader Congressional program in 2006, but as of 2026 its status remains unresolved, with no official cancellation or adoption announced. The XM109 appeared in popular culture, mentioned in the television series Person of Interest as a state-of-the-art next-generation weapon using high-explosive rounds. Its legacy is that of an ambitious but inconclusive prototype that explored the limits of shoulder-fired anti-materiel systems.

Engineering Philosophy & Modular Design

The Barrett XM109 represents a bold reimagining of the classic Barrett .50 caliber platform. Rather than building an entirely new rifle from scratch, engineers took the proven lower receiver of the M82/M107 and mated it to an all-new upper receiver chambered for the 25 × 59 mm grenade round. This modular approach means a standard M82 upper can be swapped onto the XM109 lower to restore .50 BMG capability, or an XM109 upper can be fitted to an existing M82 to produce a fully functional grenade-launching variant. The 25 × 59 mm cartridge itself carries a lineage from the cancelled XM307, a product of the Objective Crew Served Weapon program. On paper, the combination of a relatively small propellant charge and a heavy projectile promised potentially greater destructive power than even the specialized Mk 211 "Raufoss" .50 BMG round, while also delivering a shorter overall length and extended effective range over the M107. In practice, however, the physics proved punishing: recoil exceeded 60 foot-pounds—nearly double the 36 foot-pounds of the M107—because the limited propellant volume constrained how effectively the muzzle brake could function. By 2004, taming that recoil had become a stated project priority.

Development Timeline & Program Context

The XM109's journey began in 1994, when a formal requirement was issued calling for a weapon capable of defeating light armor and equipment at ranges up to two kilometers. Barrett Firearms Manufacturing answered that call, and prototype units had been in existence by the late 1990s. Formal effectiveness studies on the weapon's performance were published in 2002, and by 2004 at least ten prototype rifles were known to be in circulation. The weapon's designation shifted over time: it was first called the Objective Sniper Weapon, later rebranded as the Anti-Materiel Payload Rifle. In 2006, the XM109 program was consolidated with Barrett's XM500 project under a broader Anti-Material Rifle Congressional Program, signaling an attempt to streamline development and funding. Yet the path to adoption proved elusive. As of April 2026, no official announcement of either cancellation or fielding has been made, leaving the XM109 in a prolonged state of institutional limbo. The weapon's fate remains one of the more open-ended questions in modern U.S. small-arms development.

Tactical Role & Feature Set

Designed primarily to engage light armored vehicles and similar hardened targets, the XM109 fills a niche between conventional sniper rifles and crew-served anti-armor weapons. Its semi-automatic action and 25 × 59 mm high-explosive rounds give a single operator a capability that extends to roughly two kilometers, a range at which it can neutralize light armor and equipment. The feature set reflects a modern, modular philosophy: a Picatinny rail runs along the receiver for mounting optics and accessories, while a BORS ballistic computer assists the shooter in range and windage calculations. A monopod socket provides additional stability during sustained fire, and a dual-chamber detachable muzzle brake or suppressor system allows the operator to switch between noise reduction and recoil management as mission requirements dictate. A detachable bipod and carry handle round out the ergonomics, making the weapon practical for both mounted and handheld deployment. Together, these elements position the XM109 as a highly configurable anti-materiel tool intended for individual soldiers rather than dedicated gun crews.

Cultural Footprint & Ongoing Relevance

Though it has never achieved the widespread recognition of its .50 caliber predecessors, the XM109 has left a visible mark on popular culture. In the television series Person of Interest, specifically Season 4 Episode 6, the weapon is referenced as a "state-of-the-art next-generation weapon" whose high-explosive rounds could "wreak havoc" on the streets of New York City. That single mention underscores how the XM109's combination of individual portability and destructive power captured the imagination of writers crafting near-future threat scenarios. In the broader firearms landscape, the XM109 sits alongside other notable anti-materiel and grenade-launching systems, including the Barrett M82 and XM500, the Neopup PAW-20, the Norinco LG5/QLU-11, the XM25 CDTE, and the specialized Raufoss Mk 211 cartridge. Its unresolved status as of 2026—neither formally cancelled nor adopted—keeps it in a perpetual state of anticipation among defense analysts and enthusiasts. For Barrett Firearms Manufacturing, the XM109 remains a testament to the company's willingness to push beyond the .50 BMG paradigm and explore entirely new calibers for individual soldiers.
