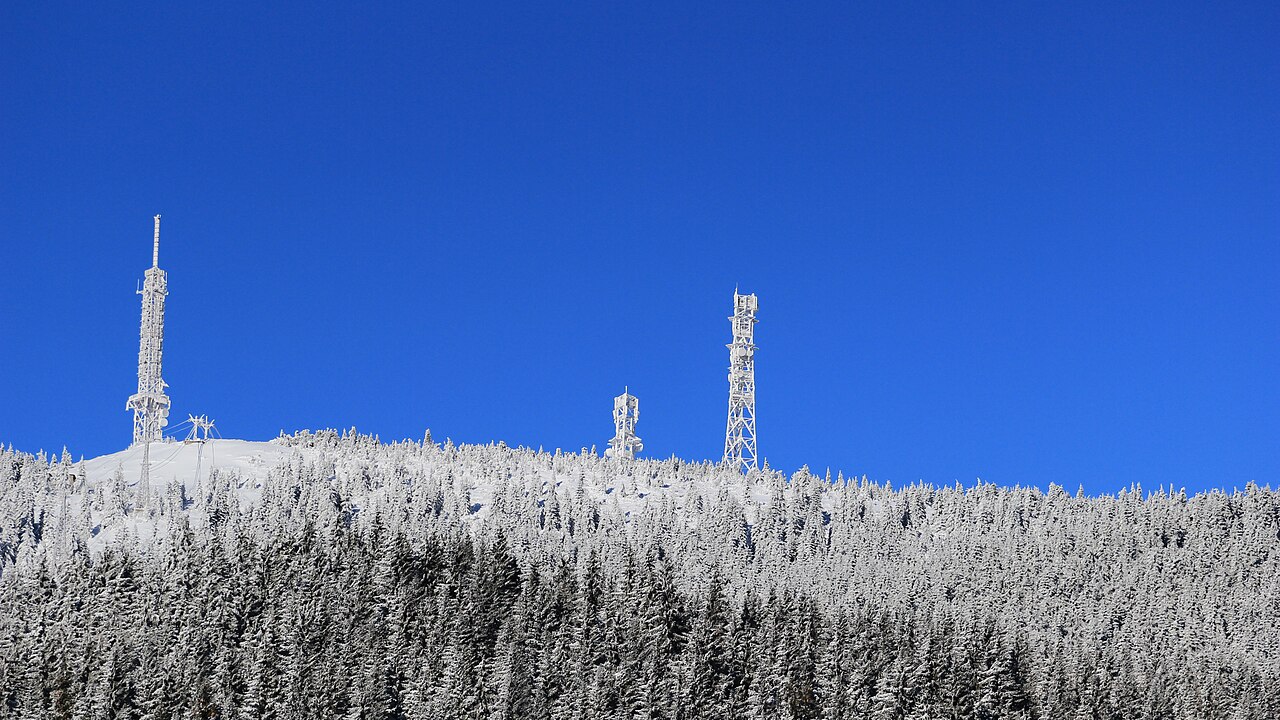

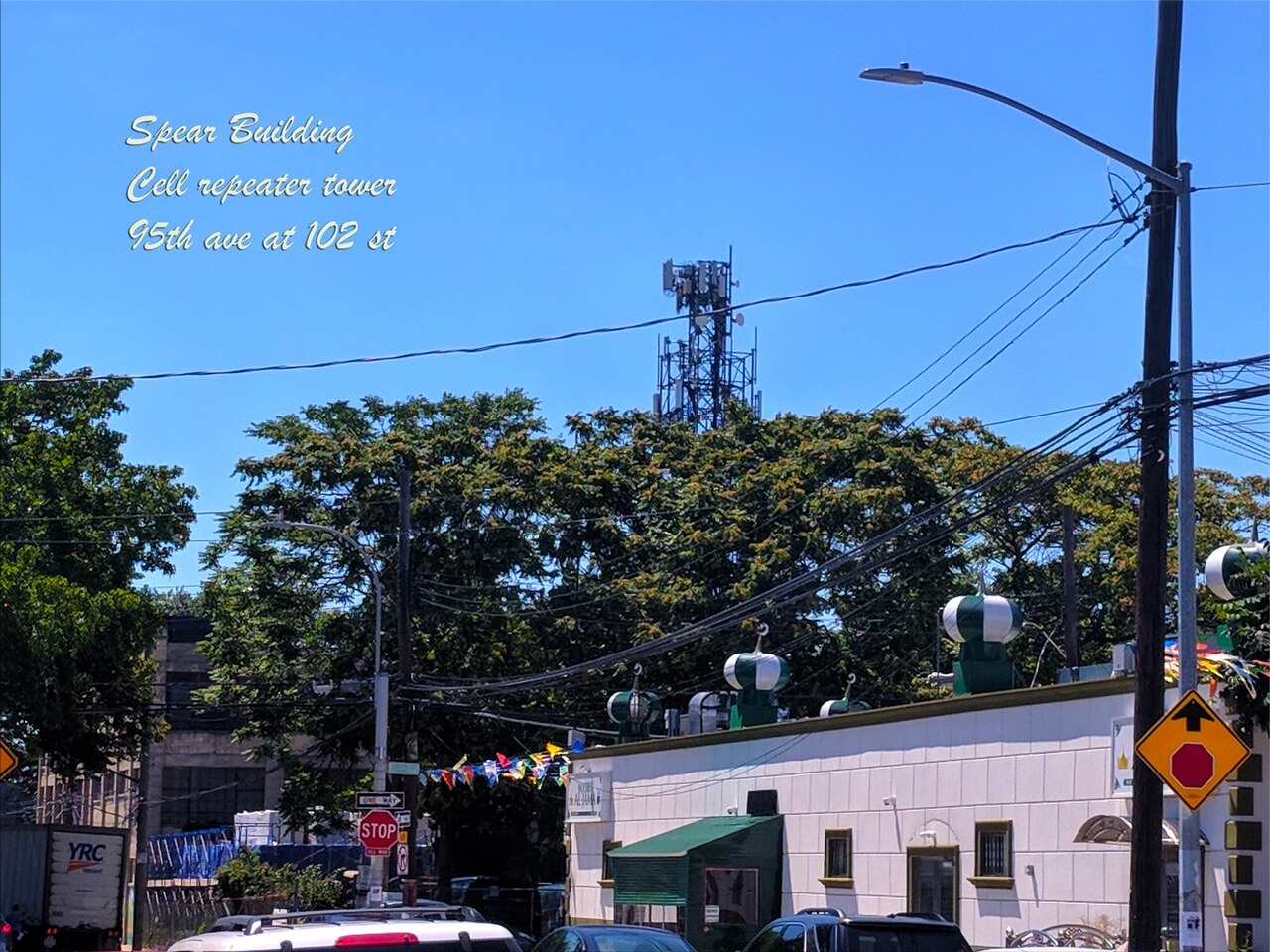

Cellular repeaters are used to address weak signal in rural areas where housing density is too low to make construction of a new base station commercially viable. In flat rural areas the signal is unlikely to suffer from multipath interference. Building construction materials such as concrete, metal, foil-backed insulation, energy-efficient windows, and metal window screens can attenuate cell phone signal. Large buildings like warehouses, hospitals, and factories often lack cellular reception, as do underground areas such as basements and shops in the centre of shopping malls. Even in urban areas with strong signals, dead zones can occur due to destructive interference of waves, typically affecting only one of the two frequency ranges used by cell phones.

Repeaters are available for all GSM frequency bands, and some handle different types of networks such as multi-mode GSM and UMTS. Repeater systems are also available for certain satellite phone systems, allowing indoor use without a clear line of sight to the satellite. A repeater must secure sufficient isolation between the donor and service antenna; when isolation is lower than actual gain plus a margin (typically 5–15 dB), the repeater may go into loop oscillation, causing interference to the cellular network. Isolation can be improved by antenna type selection, adjusting the angle between antennas (ideally 180°), space separation, insertion into an attenuating environment, or reduction of reflections. Some products include an integrated feature called ICE (interference cancellation equipment), which improves isolation but increases internal delay by approximately +5 μs.

Reader's Guide

Cellular repeaters serve as a practical solution for extending cellular coverage into areas where direct signals from towers are weak or blocked. Their significance lies in enabling communication in environments that would otherwise be dead zones: rural homes, large commercial buildings, underground spaces, and moving vehicles. The technology requires careful installation to avoid oscillation, which can disrupt the cellular network. Regulatory frameworks vary by region; in the United States, the FCC established rules effective March 1, 2014, defining two types of repeaters—wide-band boosters with limited gain (65–72 dB) and carrier-specific boosters that may have much higher gain (sometimes 100 dB). In the United Kingdom, Ofcom stated in May 2011 that installation or use of repeater devices without a licence is a criminal offence under the WT Act 2006, unless the equipment is CE marked and its use is specifically authorised. The legacy of the cellular repeater is that of a niche but essential tool for maintaining connectivity in challenging radio environments, balancing technical performance with regulatory compliance.

Did You Know?

• A cellular repeater system commonly consists of a donor antenna, coaxial cables, a signal amplifier, and an indoor rebroadcast antenna.
• When a motor vehicle's windows are closed in rain, a cell phone can lose between 50% and 100% of its reception.
• The FCC defined two types of repeaters: wide-band signal boosters and carrier-specific signal boosters.
• Amplification and filtering introduce a delay typically between 5 and 15 μs, depending on the type of repeater and features used.

System Architecture & Core Components

A cellular repeater—sometimes called a signal booster or amplifier—is fundamentally a bi-directional amplifier designed to strengthen cell phone reception in areas where it falls short. A typical installation chains together several key elements: a donor antenna positioned near a window or on a roof to capture and relay signals to and from a nearby cell tower, coaxial cables that carry the signal between components, a signal amplifier that boosts the weakened transmission, and an indoor rebroadcast antenna that redistributes the strengthened signal throughout the target space. The donor antenna itself can be directional or omnidirectional. An omnidirectional design, which radiates in every direction, suits systems meant to serve all carriers simultaneously. A directional antenna, by contrast, is chosen when a specific tower or carrier must be isolated, and its high directivity can improve the signal-to-noise ratio, yielding cleaner redistributed signal inside the building. For indoor rebroadcast, an omnidirectional antenna is often preferred because it spreads the signal evenly in all directions, compensating for attenuation caused by obstacles.

The Isolation Challenge & Oscillation Risk

One of the most critical engineering concerns in any repeater installation is maintaining sufficient isolation between the donor antenna and the service (indoor) antenna. If the isolation falls below the actual gain plus a safety margin—typically in the range of 5 to 15 dB—the system can enter in-loop oscillation, a condition that generates harmful interference across the broader cellular network. Engineers combat this through several strategies: selecting appropriate antenna types, orienting the donor and service antennas at roughly 180 degrees to each other, maintaining vertical separation of several meters (especially in tower-mounted installations), inserting attenuating materials such as metal mesh between the two antennas, and clearing nearby obstacles like trees or buildings that could cause reflections. Some commercial products integrate a feature called ICE (interference cancellation equipment), which further suppresses oscillation but at the cost of adding roughly 5 microseconds of internal delay, thereby shortening the effective radius from the donor site. All amplification and filtering stages introduce a propagation delay typically between 5 and 15 microseconds, a figure that grows with distance and can affect overall system performance.

Why Signals Fail in the First Place

Cellular repeaters exist because a wide variety of environmental and structural factors can degrade or eliminate phone reception. In rural regions, housing density is often too sparse to justify the commercial cost of erecting a new base station, leaving residents dependent on a home repeater to close the gap; fortunately, flat rural terrain tends to minimize multipath interference. Building materials pose another major obstacle: thick concrete, extensive metal framing, concrete floors poured over metal pans, foil-backed foam or fiberglass insulation, energy-efficient windows, and metal window screens can all severely attenuate or outright block radio signals. Older structures like churches are particularly notorious for this. Large indoor spaces—warehouses, hospitals, factories—frequently suffer from weak reception, as do underground areas such as basements and the central corridors of shopping malls, where an external antenna is usually the remedy. Even in urban areas with generally strong coverage, destructive wave interference can create dead zones spanning a few city blocks, typically affecting only one of the two frequency bands a phone uses. Because cell phone frequencies are too high to reflect off the ionosphere the way shortwave radio does, longer wavelengths offer the advantage of greater diffraction, reducing the strict need for line-of-sight paths.

Mobile Applications & Multi-Band Coverage

Beyond fixed building installations, cellular repeater technology extends into the mobile environment. When a vehicle's windows are closed during rain, a phone inside can lose anywhere from 50 to 100 percent of its reception. The practical solution involves mounting an antenna on the exterior of the vehicle, wiring it through the body to an internal amplifier and a second antenna positioned near the phone, effectively creating a miniature repeater loop that restores signal strength inside the cabin. On the frequency side, repeaters are manufactured to cover every GSM band, and certain models are designed to handle multiple network types simultaneously, making them versatile across carriers and technology generations. Standard channel-selective GSM repeaters, typically deployed by telecom operators to cover large buildings or wide areas, produce output power around 2 watts, while higher-power variants push output to approximately 10 watts. The power gain of any given unit is expressed in decibels using the logarithmic relationship between output power and a reference level. This range of output options and multi-band capability means that whether the application is a rural home, a multi-story hospital, or a moving vehicle on a rainy highway, a suitably configured repeater can be matched to the specific coverage need.
