Map symbol

Graphical devices representing real-world features on maps.

Last updated

Map symbol

CdnMCG · CC BY-SA 4.0

Map symbols are graphic marks that represent real-world geographic phenomena on a reduced representation of the earth.[1] Both shapes and colors are used to create these symbols on maps.[1] A map legend provides the key to understanding all symbols used on a particular map.[1]

Quick Facts

Field
Cartography
Purpose
  • Declare existence
  • show location
  • visualize attributes
  • add aesthetic appeal
  • establish visual hierarchy
Visual variables
  • Position
  • size
  • shape
  • value
  • color
  • orientation
  • texture/grain
Symbol types
  • Iconic
  • functional
  • conceptual
  • conventional
  • ad hoc
Key concept
Visual variables (size, shape, color hue, value, saturation, orientation, pattern)
Semiotic categories
  • Iconic
  • functional
  • conceptual
  • conventional
  • ad hoc symbols
Ontological forms
Objects and masses

Facts from the source article.

Key facts and history

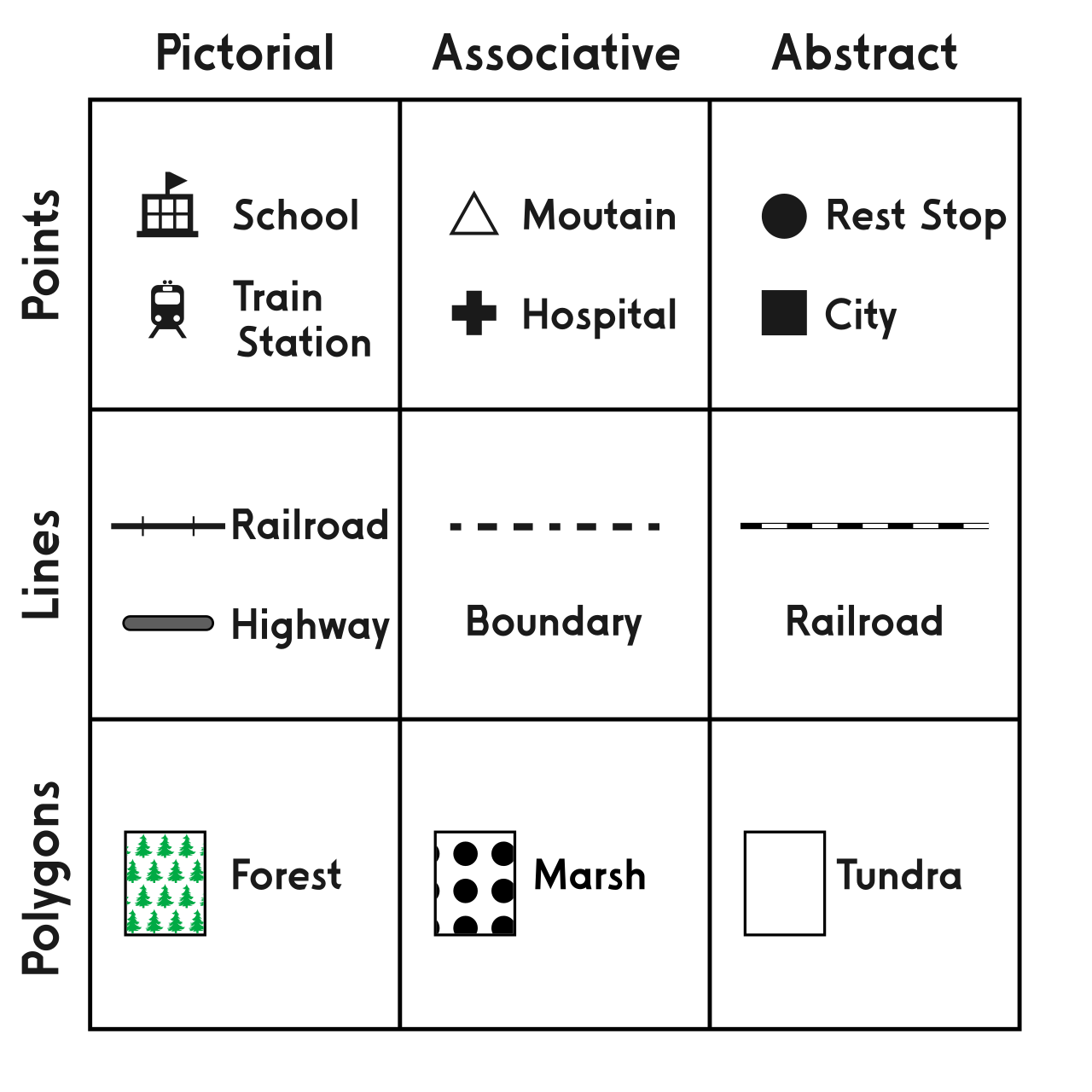

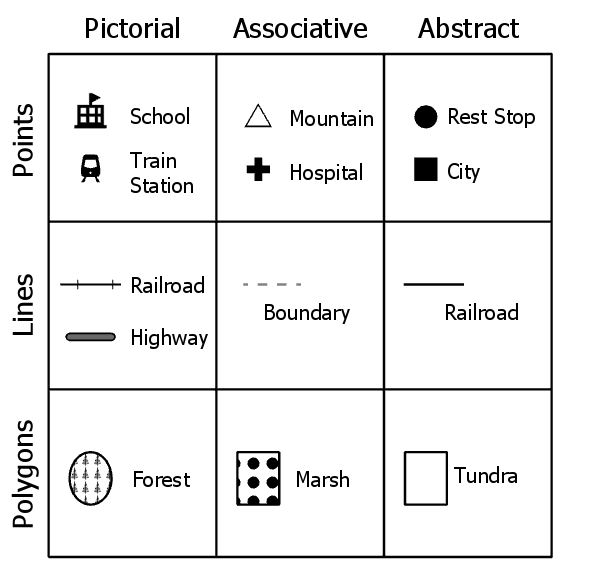

Symbols represent geographic phenomena that exist in various spatial forms.[2] Different symbol types portray different spatial forms, categorized by ontological form and dimensionality.[2] A symbol's dimensionality may differ from the real-world feature due to cartographic generalization for purpose and scale.[3] Many symbols also visualize properties or attributes of a phenomenon, not just its location and shape.[4]

Properties are usually categorized using Stanley Smith Stevens's classification system or a revision like Chrisman's.[4] Animated, haptic, and sound-based maps have also prompted analogous sets of controllable variables.[5] The geometric primitive and visual symbol chosen for a map feature depend on how many spatial dimensions are required to represent that phenomenon.[6] In his 1967 work "Sémiologie Graphique," Jacques Bertin introduced the idea of visual variables, listing seven main types: position, size, shape, value, color, orientation, and texture/grain.[7]

Later cartographers have revised and added to Bertin's original list of visual variables.[7]

What the cited sources add

The Compass Dude source states that without symbols, maps would not exist.[1] According to semiotics, map symbols are "read" when a user connects the graphic mark (sign), a concept (interpretant), and a real-world feature (object or referent).[8] Principles of cognition explain why certain map symbols work, though past mapmakers did not care why they worked.[9] Visual variables can convey information, provide contrast, establish figure-ground contrast and visual hierarchy, or add aesthetic appeal.[10]

Thematic symbols, which directly convey the map's subject, are designed to be visually prominent.[11] A map legend typically excludes symbols that are self-explanatory or unrelated to the map's theme.[11]
