Weather map

Maps displaying meteorological features for research and forecasting.

Last updated

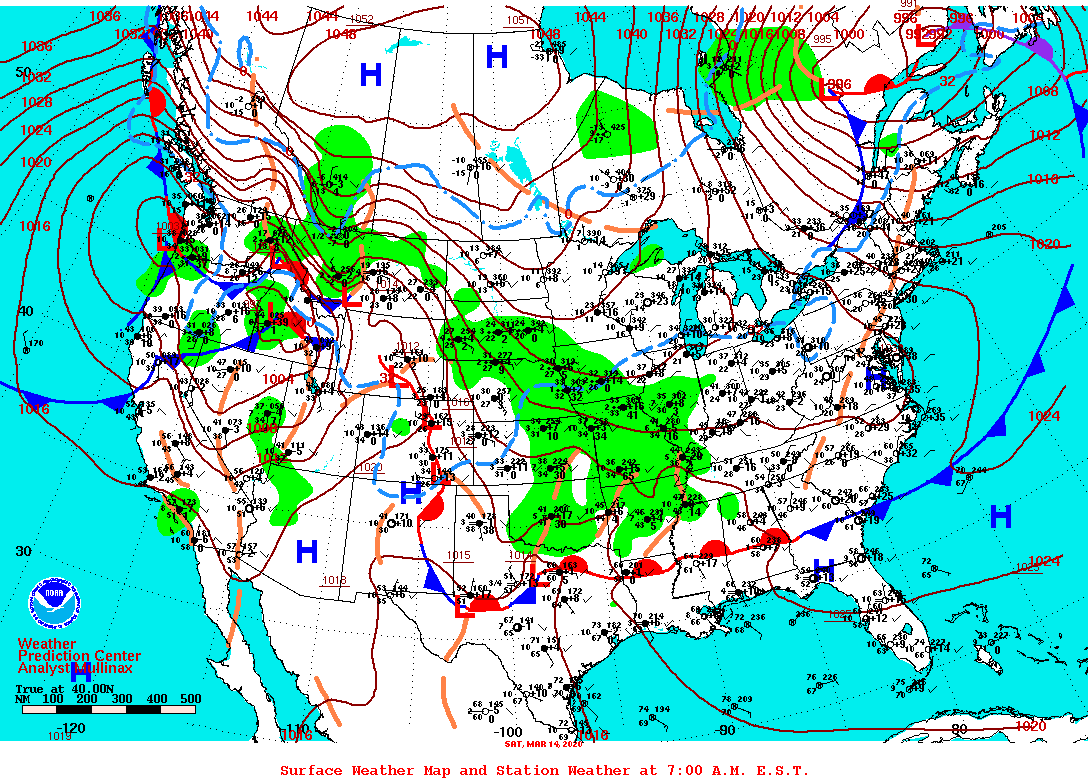

Weather map

NOAA Library · Public domain

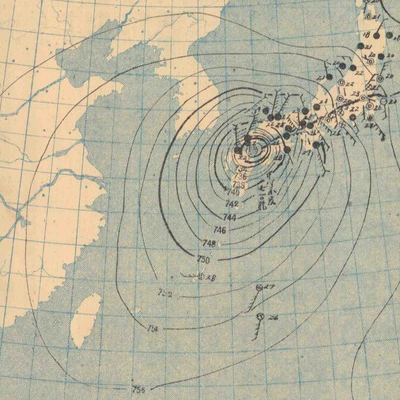

A weather map, also called a synoptic weather chart, displays meteorological features across an area at a specific time using standardized symbols.[1] The surface weather map was the first type produced, dating to the early 19th century.[2] Weather maps, also called synoptic weather charts, display meteorological features for a specific area and time using symbols with defined meanings, and they have been employed since the mid-19th century for both research and forecasting.[1]

Quick Facts

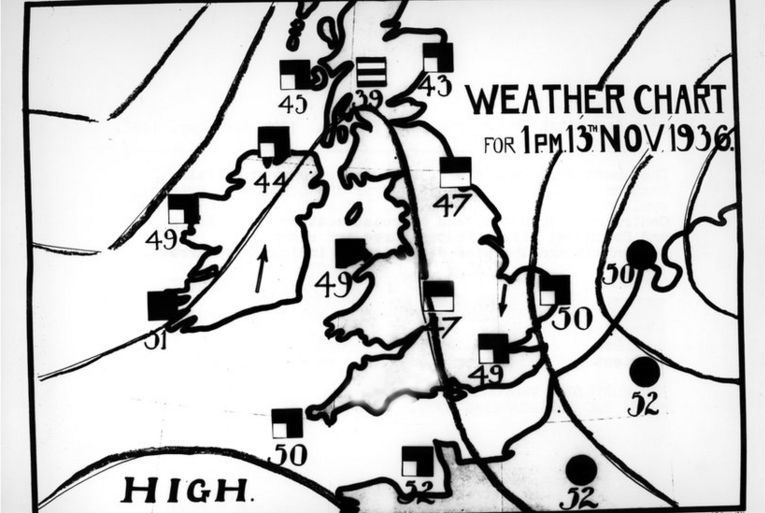

First newspaper weather map
The Times, using data from the Meteorological Office
Key early figure
Francis Galton
First known use
mid-19th century
First newspaper
The Times

Facts from the source article.

Key facts and history

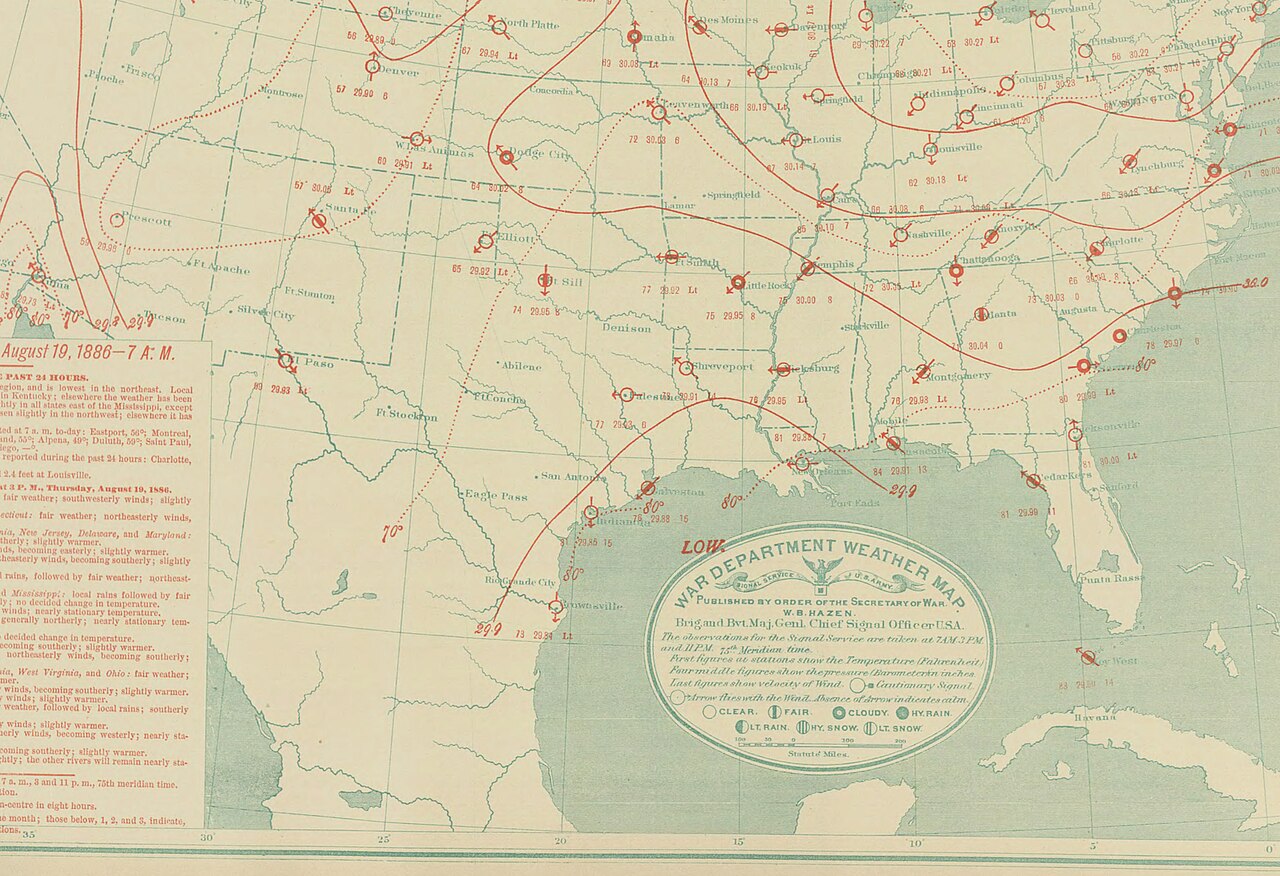

After the Crimean War, Urbain Le Verrier showed that a chronological storm map could have predicted the path of a storm that devastated the French fleet.[3] National telegraph networks were required to gather real-time weather data for country-wide maps.[4] The first use of the telegraph for weather data collection was by the Manchester Examiner in 1847.[4] The use of frontal zones on weather maps began in the 1910s in Norway.[5]

Jacob Bjerknes attributed polar front theory to a coastal observation network in Norway during World War I.[5]

What the cited sources add

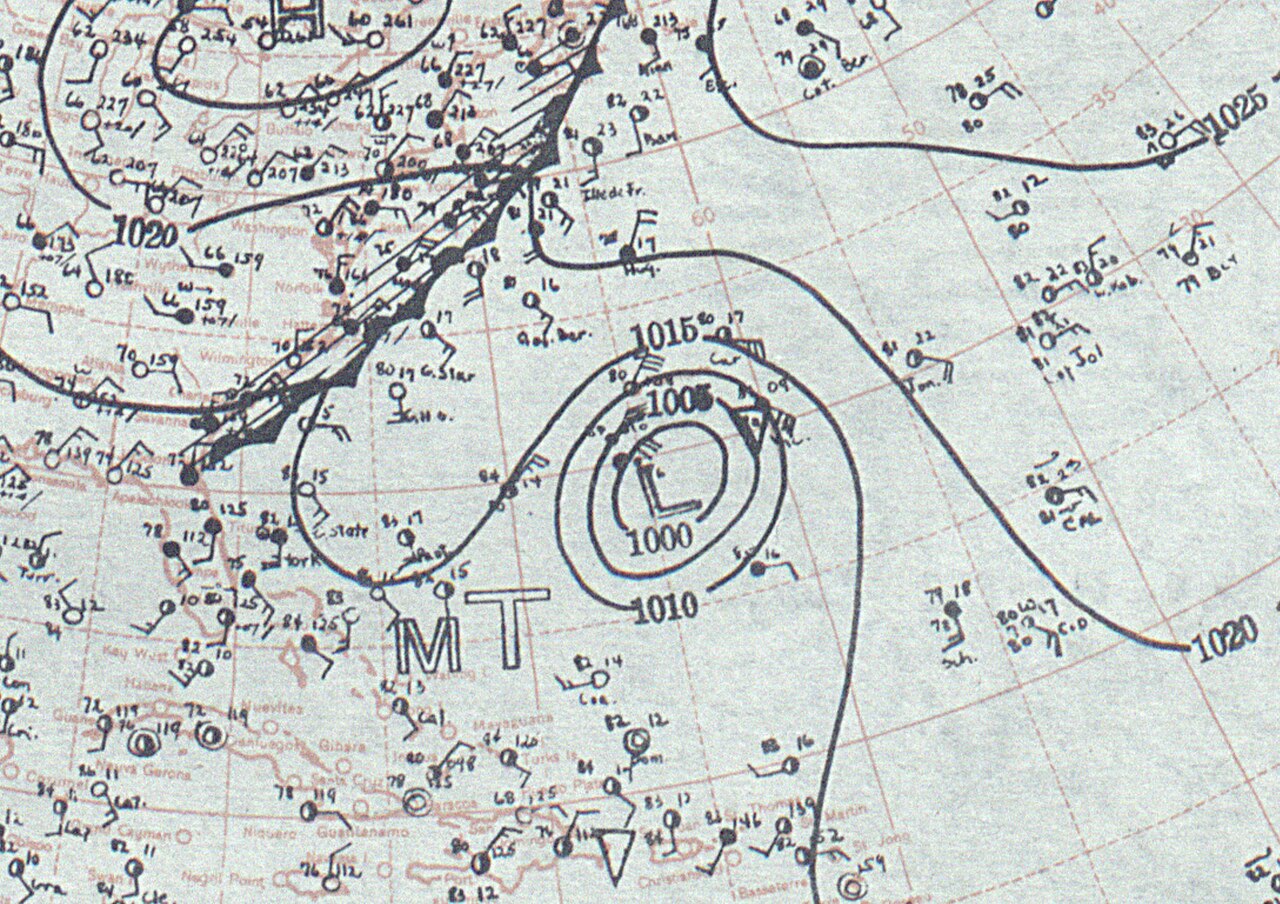

Edward J. Hopkins notes that surface weather maps are called analysis charts if they contain fronts and analyzed pressure fields with isobars.[2] Hopkins explains that synoptic weather analysis requires simultaneous observations at many sites using standardized instruments.[2] The weather data plotted on surface maps are based on hourly observations at many airport weather stations.[2] Hopkins states that some surface weather maps now contain overlays of radar or satellite imagery.[2]

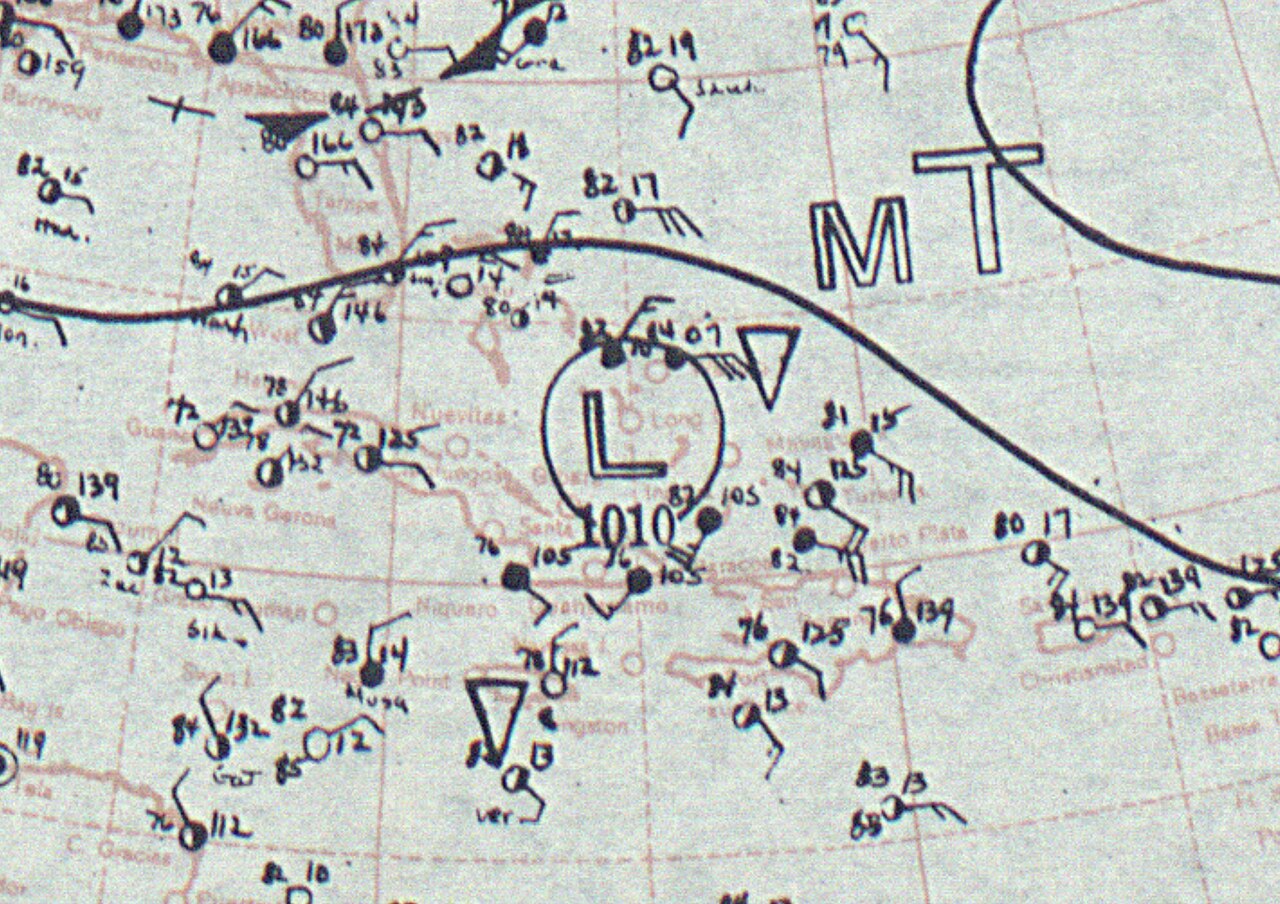

A set of international standard symbols is plotted to the left of the station model to indicate significant current weather events.[2] Hopkins describes that a trough of low pressure with significant weather may be identified by a thick brown dashed line along its axis.[2] If previous surface charts are available, one can judge the movement of weather systems based on continuity principles.[2]

References

  1. Wikipedia, "Weather map" (CC BY-SA 4.0), which cites: Encarta, "Chart", Microsoft Corporation, 2009 (original not read by us) en.wikipedia.org
  2. Edward J. Hopkins, Ph.D., "Surface Weather Analysis Chart", University of Wisconsin, 1996-06-10. facts only, no text reused. meteor.wisc.edu
  3. Wikipedia, "Weather map" (CC BY-SA 4.0), which cites: Human Intelligence, "Francis Galton (1822–1911)", Indiana University, 2007-07-25 (original not read by us) en.wikipedia.org
  4. Wikipedia, "Weather map" (CC BY-SA 4.0), which cites: Steven Roberts, "Distant Writing - The Companies and the Weather" (original not read by us) en.wikipedia.org
  5. Wikipedia, "Weather map" (CC BY-SA 4.0), which cites: University of Oklahoma. The Norwegian Cyclone Model. Retrieved on 2007-05-17.; Bureau of Meteorology, "Air Masses and Weather Maps", Commonwealth of Australia, 2010; Weather Prediction Center, "A Brief History of the Weather Prediction Center", National Oceanic and Atmospheric Administration, 2007-03-01 (original not read by us) en.wikipedia.org

Each numbered sentence above was checked against the source it cites before publication. Sentences citing Wikipedia adapt text from the English Wikipedia article Weather map (contributors), used under CC BY-SA 4.0; this entry is available under the same licence. Other sources were used for facts only; no text or images are copied from them.
