Dot distribution map

Lore & Background

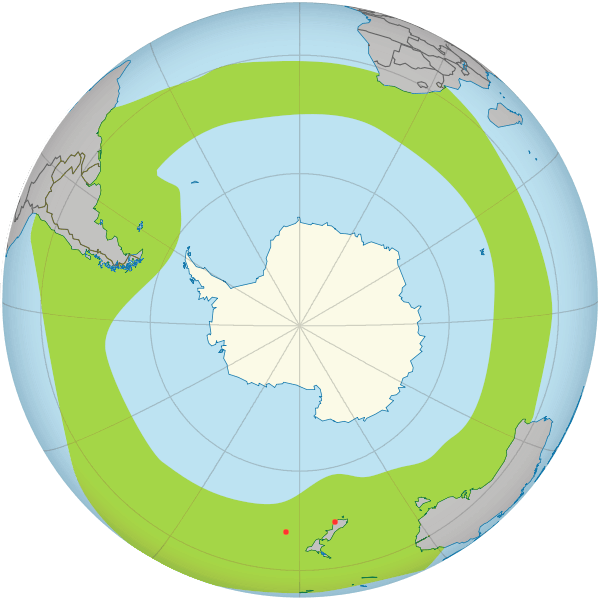

A dot distribution map, also known as a dot density map, uses point symbols to show the geographic spread of numerous related phenomena. The dots can either mark the precise locations of individual items or be randomly placed within administrative areas to represent a count of people or objects. Although these two methods are based on different models, both produce a visual scatter that reveals spatial patterns, especially variations in density. The technique emerged during the Industrial era in England and France in the 1830s and 1840s, enabled by growing statistical data and its recognized scientific value.

The earliest known example is a 1797 map by Valentine Seaman showing yellow fever cases in New York City, though its small number of points differs from typical later uses. The first district-based dot map was created in 1830 by Armand Joseph Frère de Montizon, depicting French population by département, with each dot representing 10,000 people. His map used the same method still practiced today: dots are spread randomly across each district based on its total population, producing an intuitive density display.

This approach exemplifies an ecological fallacy, as the evenly spaced dots do not reflect actual dwelling locations. The technique was reinvented in 1859 by Thure Alexander von Mentzer for a map of Sweden and Norway. Point feature maps were also revived in mid-19th-century epidemiology, notably in Thomas Shapter’s 1849 map of cholera in Exeter, which used different symbols for cases across three years. John Snow’s 1855 map of the London cholera outbreak, showing cases stacked at house locations, is now celebrated for its effective communication of spatial disease patterns.

Origins and Early Pioneers

The concept of using scattered points to convey geographic density emerged during a period of rapid thematic mapping innovation in the 1830s and 1840s, driven by the Industrial era's growing statistical data and scientific curiosity. However, the technique's roots stretch further back. In 1797, Valentine Seaman plotted individual yellow fever cases in New York City, a small-scale precursor that nonetheless marked a significant early use of mapping as an analytical tool in social science and epidemiology, even though his conclusions proved wrong. The first true district-based dot density map appeared in 1830, produced by Armand Joseph Frère de Montizon, a Franciscan friar who also worked as a schoolteacher and printer.

His map of French population by département placed dots—each standing for 10,000 people—randomly within administrative borders. The method was essentially identical to what computers still perform today: calculate a count, scatter dots across the area, and let density speak for itself. The even spacing made it clear the dots were not actual addresses, illustrating what we now call an ecological fallacy.

The Cholera Connection and John Snow

Epidemiology served as a powerful catalyst for the point-symbol map throughout the mid-nineteenth century, particularly in the search for cholera's cause. Between 1820 and 1850, cartographers produced maps plotting every individual case in affected regions. Thomas Shapter's 1849 map of the 1832–1834 Exeter outbreak stood out for its use of distinct point symbols to differentiate cases across three separate years. Though Shapter never identified the underlying cause of the clusters he revealed, his work left a lasting imprint; John Snow later acknowledged it as an inspiration.

When cholera struck London in 1854, Snow gathered case-by-case location data in Soho, applying early spatial analysis and contact tracing to implicate contaminated water. His 1855 report included a map stacking individual cases at house locations, making the concentration around the Broad Street Pump—and the gaps where alternative water sources existed—visually unmistakable. While historians sometimes overstate the map's direct role in ending the debate, Snow's insight that a map was the most effective way to communicate spatial disease patterns remains genuinely revolutionary.

Standardization and Cartographic Practice

Despite its early invention, the district-based dot density map languished for nearly three decades after Montizon's 1830 publication before being independently reinvented in 1859 by Thure Alexander von Mentzer, a Swedish Army officer. His map of population across Sweden and Norway used dots representing 200 residents each, based on the 1855 Census but clearly adjusted with additional knowledge of where people actually lived.

In the decades that followed, dot maps were less commonly produced than other thematic map types, partly because hand-drawing them was labor-intensive; many were considered achievements worthy of standalone academic publication. A hybrid approach emerged in the early twentieth century, combining representative dots for rural areas with proportional circles for major cities. By the mid-twentieth century, the dot density method had been formalized into standardized design guidelines, making it a staple of cartography textbooks and a teachable technique for new mapmakers.

Modern Technology and Future Directions

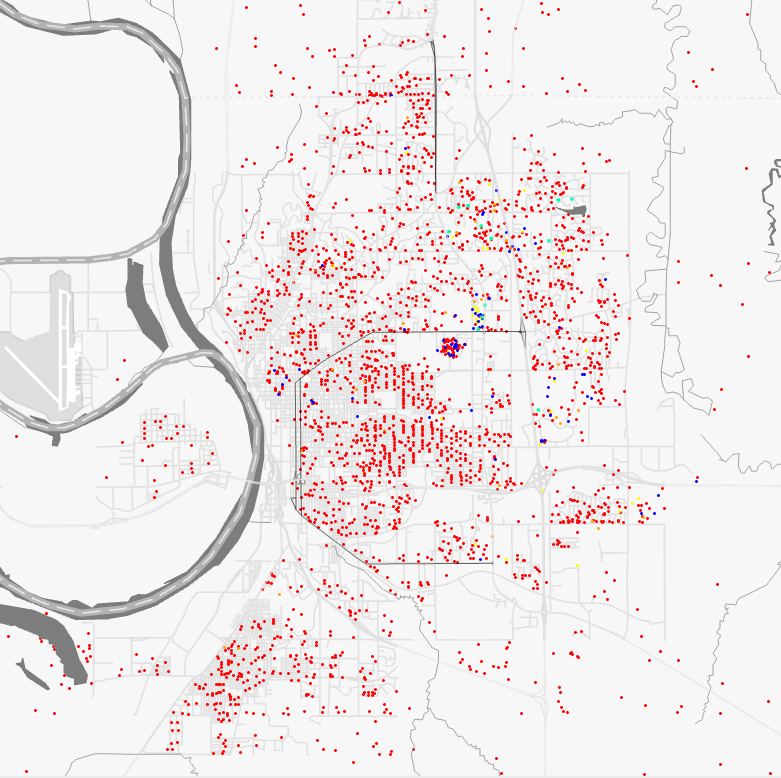

The arrival of geographic information systems transformed dot map production by automating the placement of individual dots, though practitioners often note that computer-generated results can fall short of the carefully crafted manual versions. A more significant technological leap came with the availability of massive geocoded datasets—millions of social media posts, for instance—enabling visualizations of geographic distribution at unprecedented granularity. Recent methodological innovations push the technique further in several directions. Dasymetric mapping techniques now allow dots to be placed more accurately within zones rather than scattered uniformly.

Scaling approaches adjust the rate of dots per person at different zoom levels, so the map remains informative whether viewed broadly or up close. Temporal interpolation has made it possible to animate dot maps, showing how distributions shift over time. These advances ensure that a technique born from hand-drawn ink in the nineteenth century continues to evolve alongside the data it represents.

Reader's Guide

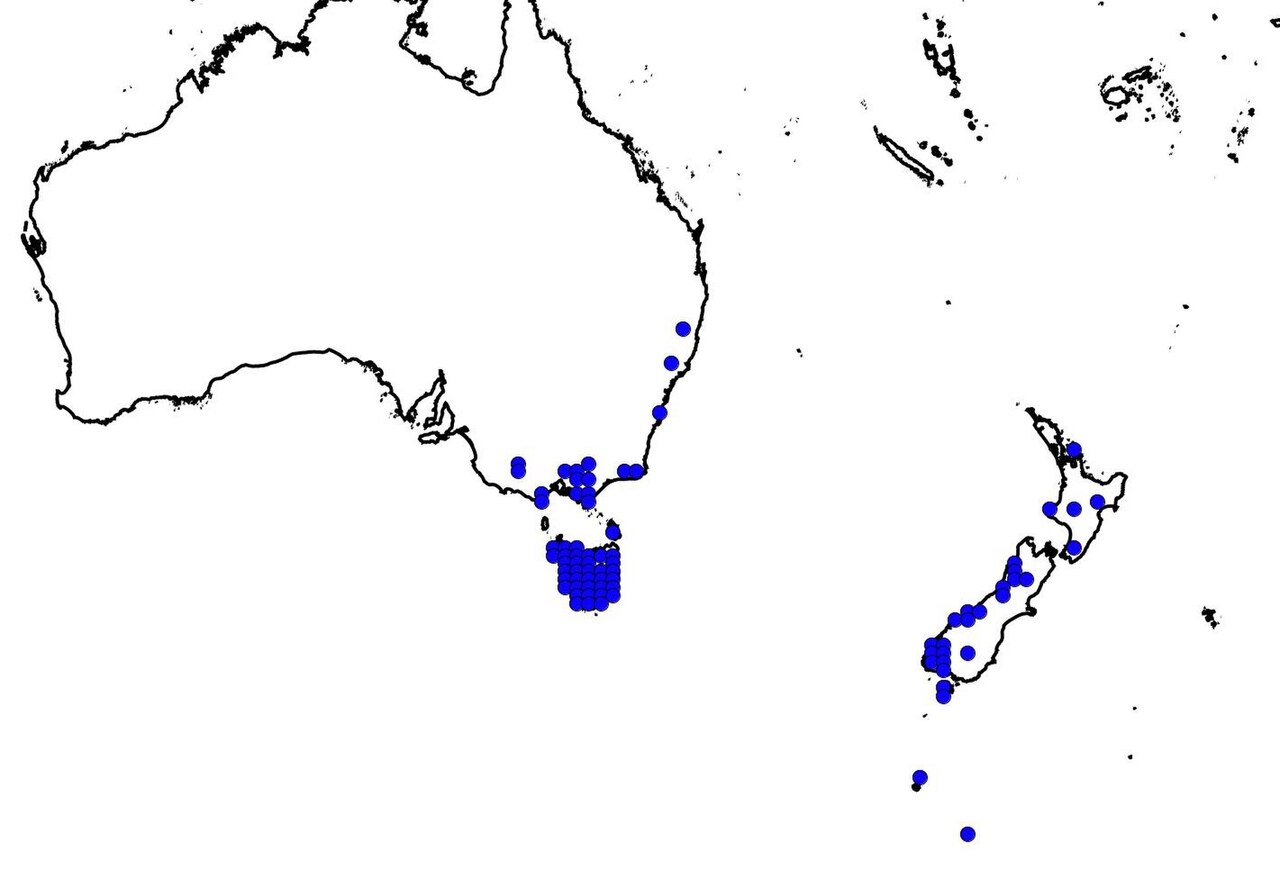

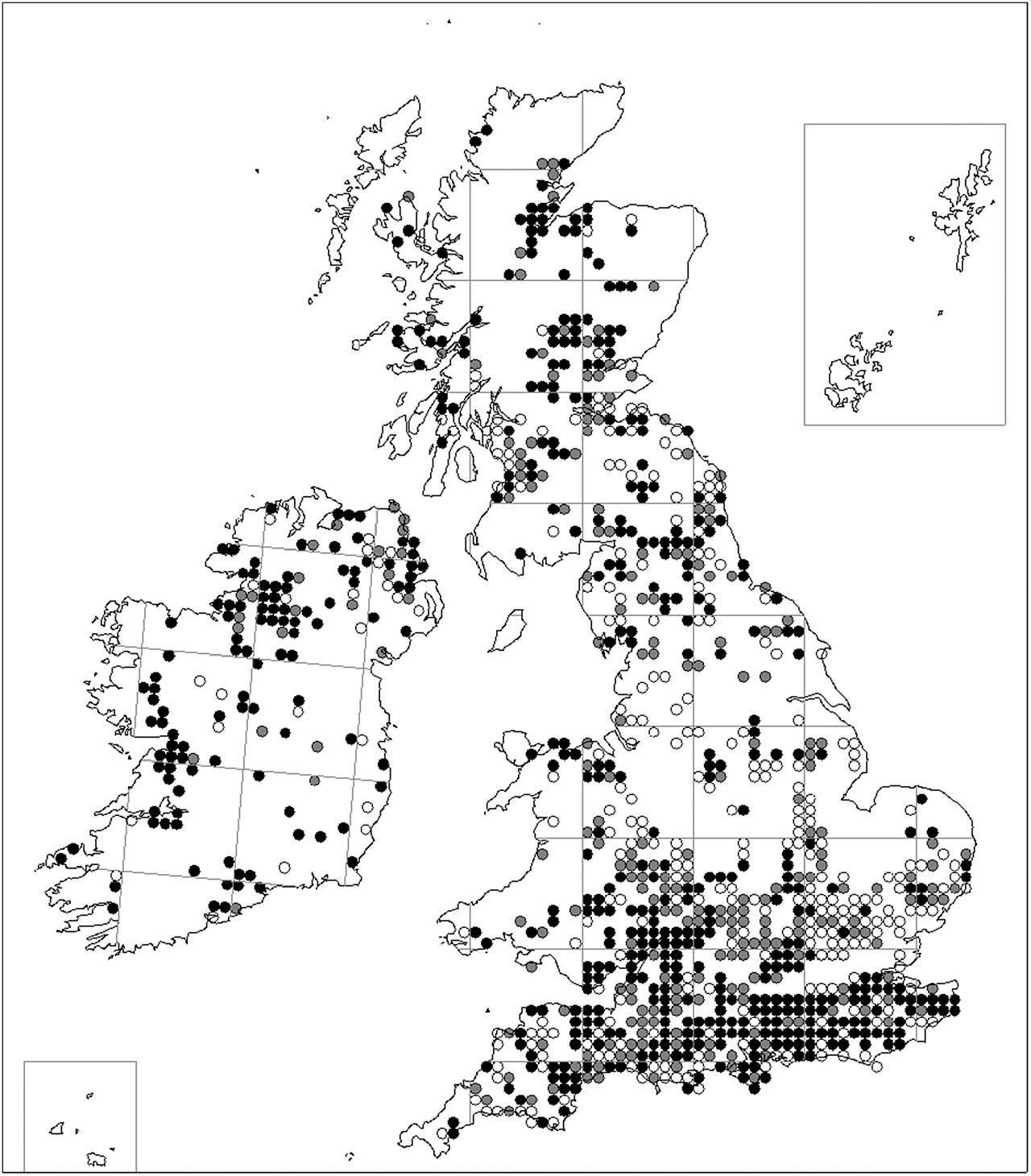

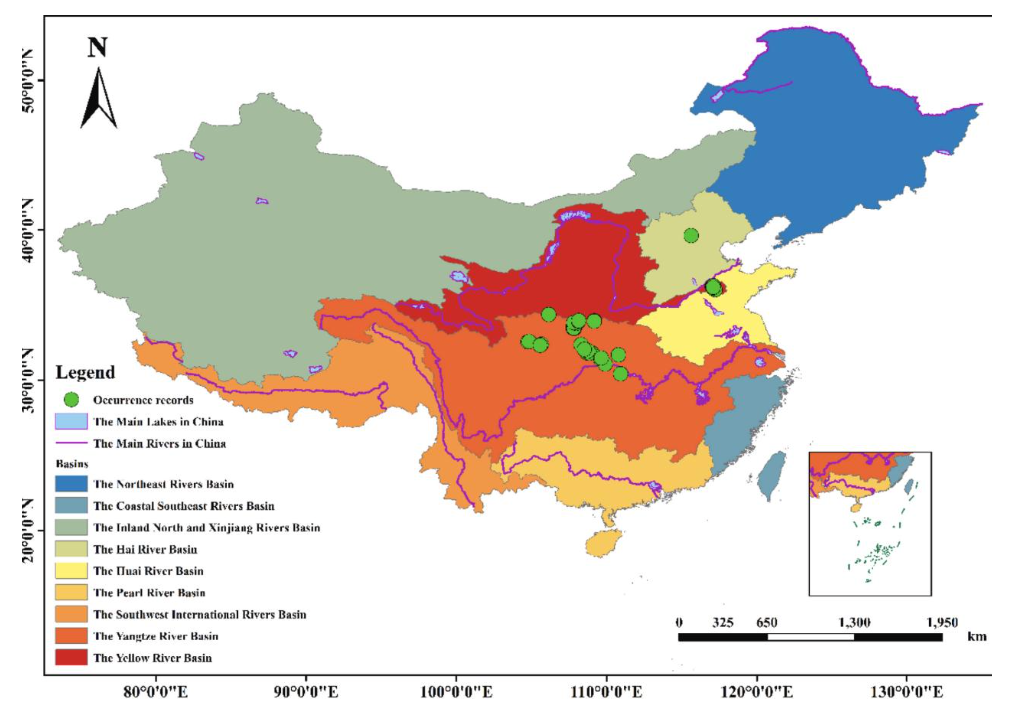

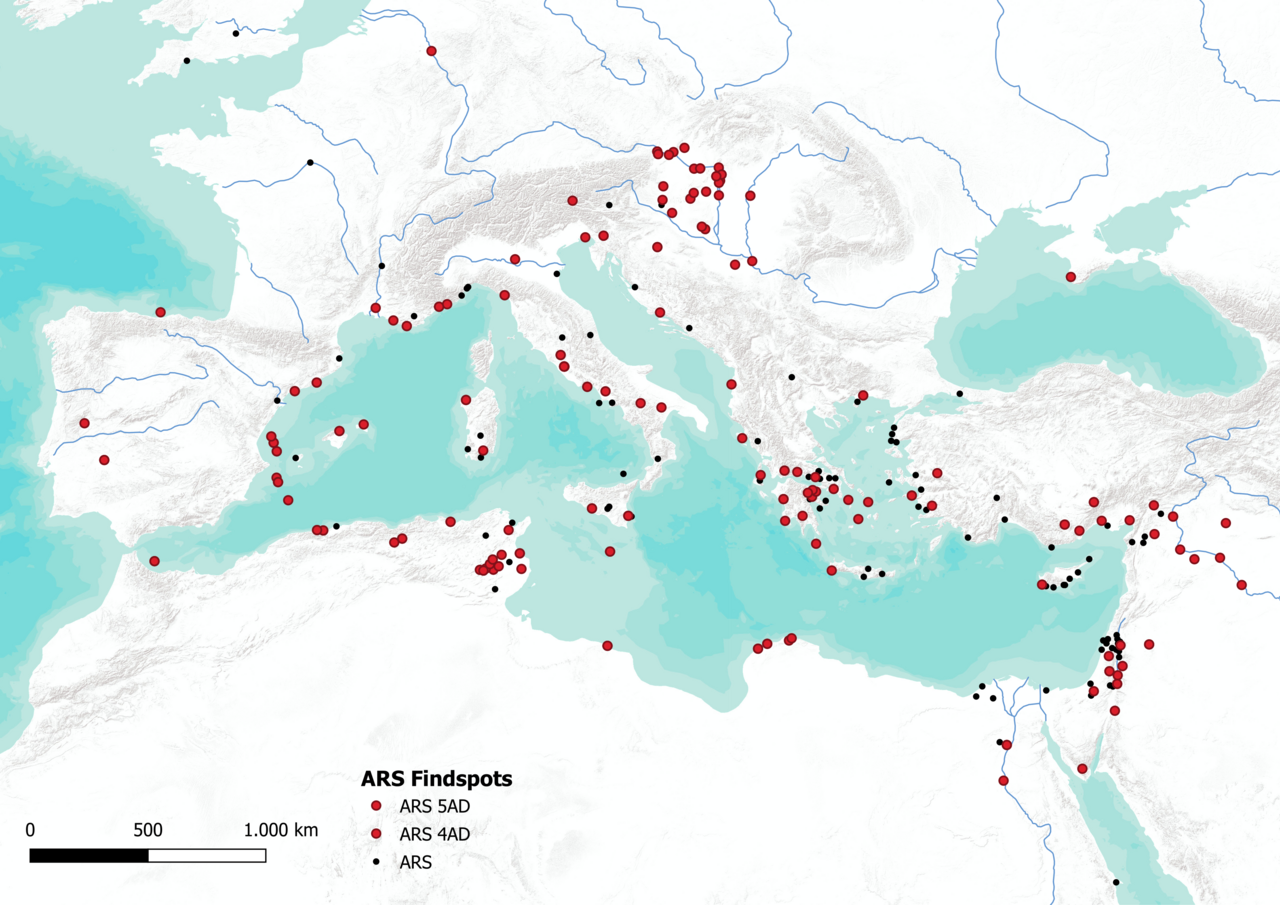

Dot distribution maps, also known as dot density maps, are thematic maps that use point symbols to show the geographic distribution of numerous related phenomena. They rely on visual scatter to reveal spatial patterns, particularly variations in density. Two fundamentally different types exist: one-to-one maps, where each dot marks the actual location of a single occurrence, and one-to-many maps, where dots are randomly placed within aggregation districts to represent a set number of individuals.

Although these procedures and their underlying models differ greatly, the general visual effect is similar. The technique emerged during the Industrial era in England and France, enabled by growing statistical data. The earliest known district-based dot density map was created in 1830 by Armand Joseph Frère de Montizon, a Franciscan friar, who randomly placed dots across French départements, each representing 10,000 people. This method, still used today, can commit an ecological fallacy by implying uniform distribution within a district.

The one-to-one map was reinvented in epidemiology, notably by Thomas Shapter in 1849, who used different symbols for cholera cases across three years. John Snow’s 1855 map of London’s cholera outbreak, showing stacked cases at house locations, is celebrated for communicating spatial patterns effectively, though its role in the investigation is often overstated. Dot maps were less prolific than other thematic maps, partly due to the labor required for manual creation.
