FAMAE SAF

Lore & Background

The SAF is a shortened version of the SIG 540 rifle, but the rifle's rotating bolt has been replaced with a simple blowback bolt. It retains a bolt hold-open catch that engages after the final shot, and the receiver, stock, fore-end, trigger/hammer assembly, and floating firing pin design are from the SIG 540. The folding trigger guard for winter glove use is also retained. The upper and lower receiver and the trigger guard are steel, while the pistol-grip and handguards are polymer. The ambidextrous safety/fire selector switch and interchangeability with SIG 552/553 handguards are features of the latest versions; older versions used their own handguards.

The 9mm magazines use transparent polymer, allowing visual round count, and have protruding lugs and slots to clip two or three magazines together for quicker changes. The .40 S&W magazines are steel and hold 30 rounds. The selector has four settings: safe, single shot, 3-round burst, and fully automatic. Some models were made in semi-auto only configuration for law enforcement and civilian customers, with semi-automatic-only variants manufactured by FAMAE mostly marketed for sale in Canada.

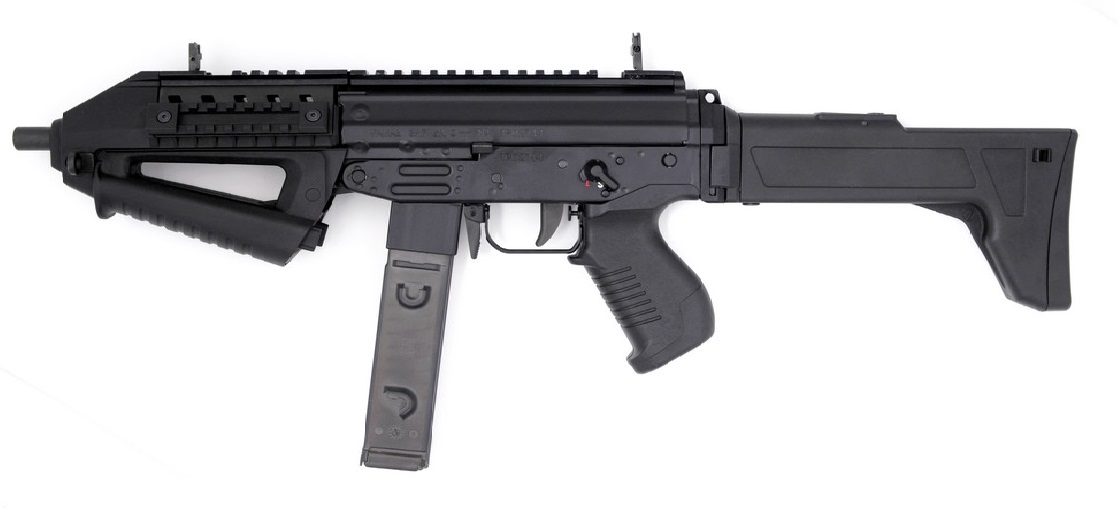

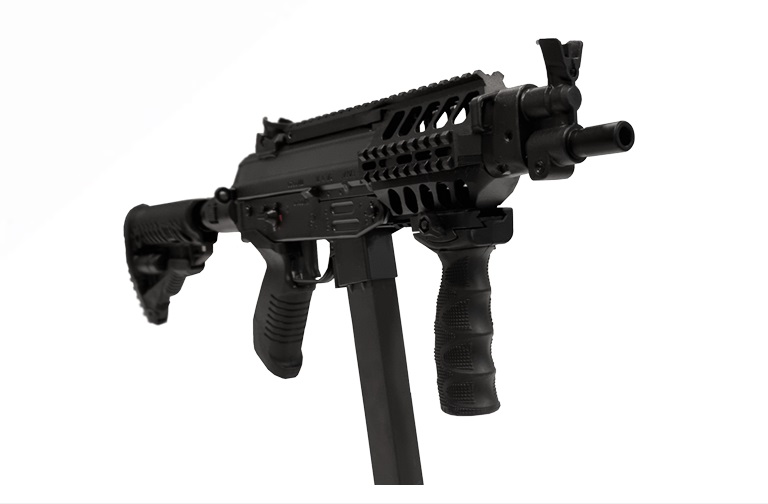

Four variants are manufactured: standard with fixed polymer buttstock; standard with left-side-folding tubular metal buttstock; the SAF SD, an integrally suppressed variant with a 220 mm barrel, lowered fire rate of 980 rpm, and muzzle velocity of 300 m/s; and the Mini-SAF, a compact variant 300 mm long with a 110 mm barrel, no shoulder stock (though the folding stock can be attached), and a vertical foregrip. The Mini-SAF uses standard 30-round magazines but comes with special 20-round magazines. All versions have post-front sights with adjustable elevation and aperture-rear sights adjustable for windage. The SAF-200 is a modernised variant being tested by FAMAE and the Chilean Army, featuring a new retractable and foldable stock, new handguard, and Picatinny rails standard for optics and attachments.

Reader's Guide

The FAMAE SAF represents a pragmatic adaptation of a proven rifle design into a compact submachine gun, leveraging the existing SIG 540 production tooling and parts commonality. Its adoption by the Chilean Armed Forces and police, as well as by security forces in Argentina, Brazil, El Salvador, and Portugal, demonstrates its acceptance across diverse operational environments. The Taurus license production in .40 S&W for Brazilian law enforcement since 1999 extended the platform's reach and caliber options. The SAF's design choices—such as the closed-bolt blowback operation, ambidextrous controls, and transparent magazines—reflect a focus on reliability, user convenience, and tactical flexibility. The suppressed SAF SD and compact Mini-SAF variants address specialized roles, while the ongoing development of the SAF-200 with modern rail systems indicates FAMAE's intent to keep the platform relevant. The SAF's legacy is that of a serviceable, no-frills submachine gun that successfully adapted an existing military rifle lineage to meet the needs of police and military users in multiple countries.

Did You Know?

• The SAF is based on the Swiss SIG SG 540 assault rifle, which was produced under license in Chile in the 1980s.
• Since 1999, Taurus has produced the SAF under license in .40 S&W for Brazilian law enforcement.
• The SAF SD suppressed variant has a lowered fire rate of 980 rpm and a muzzle velocity of 300 m/s.
• The Mini-SAF is only 12 inches (300 mm) long and comes with special 20-round magazines.

Design & Engineering Heritage

The FAMAE SAF traces its mechanical DNA to the Swiss SIG SG 540 assault rifle, a platform that Chilean engineers had already been producing under licence during the 1980s. Rather than starting from scratch, the SAF team took that proven rifle architecture and compressed it into a submachine-gun form factor. The most consequential change was replacing the SIG 540's rotating bolt with a straightforward blowback bolt, while the weapon still fires from a closed-bolt position. Everything else—the receiver geometry, stock, fore-end, trigger and hammer assembly, and the floating firing pin—carries over directly from the parent rifle. Even the small folding trigger guard, originally designed so a soldier could operate the gun while wearing winter gloves, was retained. Structurally, the upper and lower receivers along with the trigger guard are machined from steel, while the pistol grip and handguards are moulded polymer. Later production runs added an ambidextrous safety and fire-selector switch and made the handguards interchangeable with those on the SIG 552 and 553, a convenience not present on earlier models that used proprietary guards.

Operational Variants & Configurations

FAMAE offered the SAF in four distinct configurations to suit different operational needs. The two standard models differ only in their buttstock: one ships with a fixed polymer stock, while the other features a tubular metal stock that folds to the left side. The SAF SD is a dedicated suppressed variant, pairing an integral silencer with a folding stock and a slightly elongated 220-millimetre barrel; its suppressed configuration brings the cyclic rate down to 980 rounds per minute and muzzle velocity to 300 metres per second. The Mini-SAF is the most compact iteration, measuring just 300 millimetres overall with a 110-millimetre barrel, a vertical foregrip, and no fixed shoulder stock—though the standard folding stock can be retrofitted. It accepts the usual 30-round magazines or a purpose-built 20-round version for a slimmer profile. Every variant shares post-type front sights with adjustable elevation and aperture rear sights with windage adjustment. Looking ahead, the SAF-200 modernisation, currently in testing with FAMAE and the Chilean Army, introduces a retractable and foldable stock, a redesigned handguard, and standard Picatinny rails for mounting optics and lateral accessories.

International Service & Licensing

Since entering production in 1993, the SAF has found a surprisingly wide customer base across the Americas and Europe. In its home country of Chile, the weapon is in service with both the armed forces and national police. Neighbouring Argentina fields the SAF with its Airport Security Police and the Mendoza Provincial Police, while in Brazil the Federal Highway Police and the Military Police of São Paulo State have adopted it. El Salvador's National Civilian Police also use the platform, and Portugal's National Republican Guard employed the SAF before moving on to other systems. A significant licensing arrangement has been in place since 1999, when Taurus began manufacturing the SAF under licence specifically for Brazilian law-enforcement agencies, chambered in .40 S&W rather than the standard 9mm. That .40 S&W variant uses steel magazines with a 30-round capacity. Meanwhile, FAMAE itself produces semi-automatic-only versions of the SAF that are primarily marketed for sale in Canada, catering to civilian and law-enforcement buyers who require a single-shot-only configuration.

Magazine System & Fire-Mode Ergonomics

One of the SAF's most practical design touches is its magazine system. The standard 9mm magazines are moulded from transparent polymer, letting the shooter glance at the remaining round count without pulling the magazine. To speed up reloads under pressure, each magazine carries protruding lugs on one side and matching slots on the other, so two or three mags can be stacked and carried as a single unit—sliding one out and dropping the next in takes only a moment. The .40 S&W magazines, by contrast, are machined from steel and hold 30 rounds. On the fire-control side, the full select-fire selector offers four positions: safe, single shot, three-round burst, and fully automatic. Semi-automatic-only builds exist for law-enforcement and civilian markets. The latest production models feature an ambidextrous safety and fire-selector switch, a welcome upgrade for left-handed operators. The original SIG 540-derived folding trigger guard remains in place, preserving the ability to manipulate the trigger while wearing bulky winter gloves—a small detail that speaks to the rifle's military heritage.
