Instrument flight rules
Rules for flying by instruments when visual reference is unsafe.
Instrument flight rules (IFR) is one of two sets of regulations governing all aspects of civil aviation aircraft operations, the other being visual flight rules (VFR). The U.S. Federal Aviation Administration's Instrument Flying Handbook defines IFR as rules and regulations established to govern flight under conditions in which flight by outside visual reference is not safe, depending upon flying by reference to instruments in the flight deck and navigation by reference to electronic signals. IFR permits an aircraft to operate in instrument meteorological conditions (IMC), which is any weather condition less than visual meteorological conditions (VMC) but in which aircraft can still operate safely.
- Minimum vfr visibility
- 3 statute miles
- Vfr cloud distance below
- 500 feet
- Vfr cloud distance above
- 1,000 feet
- Vfr cloud distance horizontally
- 2,000 feet
- Class a airspace lower limit
- 18,000 feet above mean sea level
- Class a airspace upper limit
- flight level 600 (60,000 feet pressure altitude)
Lore & Background
IFR is used when operation under VFR is not safe because visual cues outside the aircraft are obscured by weather such as clouds, fog, rain, or dust. It is also required when flying in Class A airspace, which extends from 18,000 feet above mean sea level to flight level 600 over the contiguous 48 United States and waters within 12 miles thereof, regardless of weather conditions. In many countries, commercial airliners and their pilots must operate under IFR as most flights enter Class A airspace.
Procedures and training for IFR are significantly more complex than for VFR, as a pilot must demonstrate competency in conducting an entire cross-country flight solely by reference to instruments. Instrument pilots must carefully evaluate weather, create a detailed flight plan based around specific instrument departure, en route, and arrival procedures, and dispatch the flight. The most important concept of IFR flying is that separation from obstacles and other aircraft is maintained regardless of weather conditions.
In controlled airspace, air traffic control (ATC) separates IFR aircraft from obstacles and other aircraft using a flight clearance based on route, time, distance, speed, and altitude. ATC monitors IFR flights on radar or through aircraft position reports. In the United States, a flight operating under IFR must provide position reports unless ATC advises that the plane is in radar contact. In uncontrolled airspace, ATC clearances are unavailable, and separation is not mandated nor widely provided. Despite the protection offered by flight in controlled airspace under IFR, the ultimate responsibility for the safety of the aircraft rests with the pilot in command, who can refuse clearances.
Reader's Guide
IFR is significant because it enables safe aircraft operation in instrument meteorological conditions (IMC), where visual flight is unsafe. It is essential to differentiate between flight plan type (VFR or IFR) and weather conditions (VMC or IMC); an IFR flight encountering VMC en route does not automatically change to a VFR flight and must still follow all IFR procedures. A significant amount of IFR flying is conducted in VMC, where the crew is responsible for seeing and avoiding VFR traffic while ATC still provides separation from other IFR traffic.
During IFR flight, there are no visibility requirements, so flying through clouds with zero visibility is legal and safe, though minimum weather conditions for takeoff and landing vary. The legacy of IFR includes its role in preventing spatial disorientation, which is a cause of a significant number of general aviation crashes when VFR pilots continue into IMC. IFR procedures also include 'VFR-on-top,' where an aircraft operates in VMC using a hybrid of VFR and IFR rules, and 'VFR over the top,' a VFR procedure where the aircraft takes off and lands in VMC but flies above an intervening area of IMC. 'Special VFR' flight is also possible in many countries, allowing VFR operation in controlled airspace in conditions technically less than VMC with ATC permission.
Did You Know?

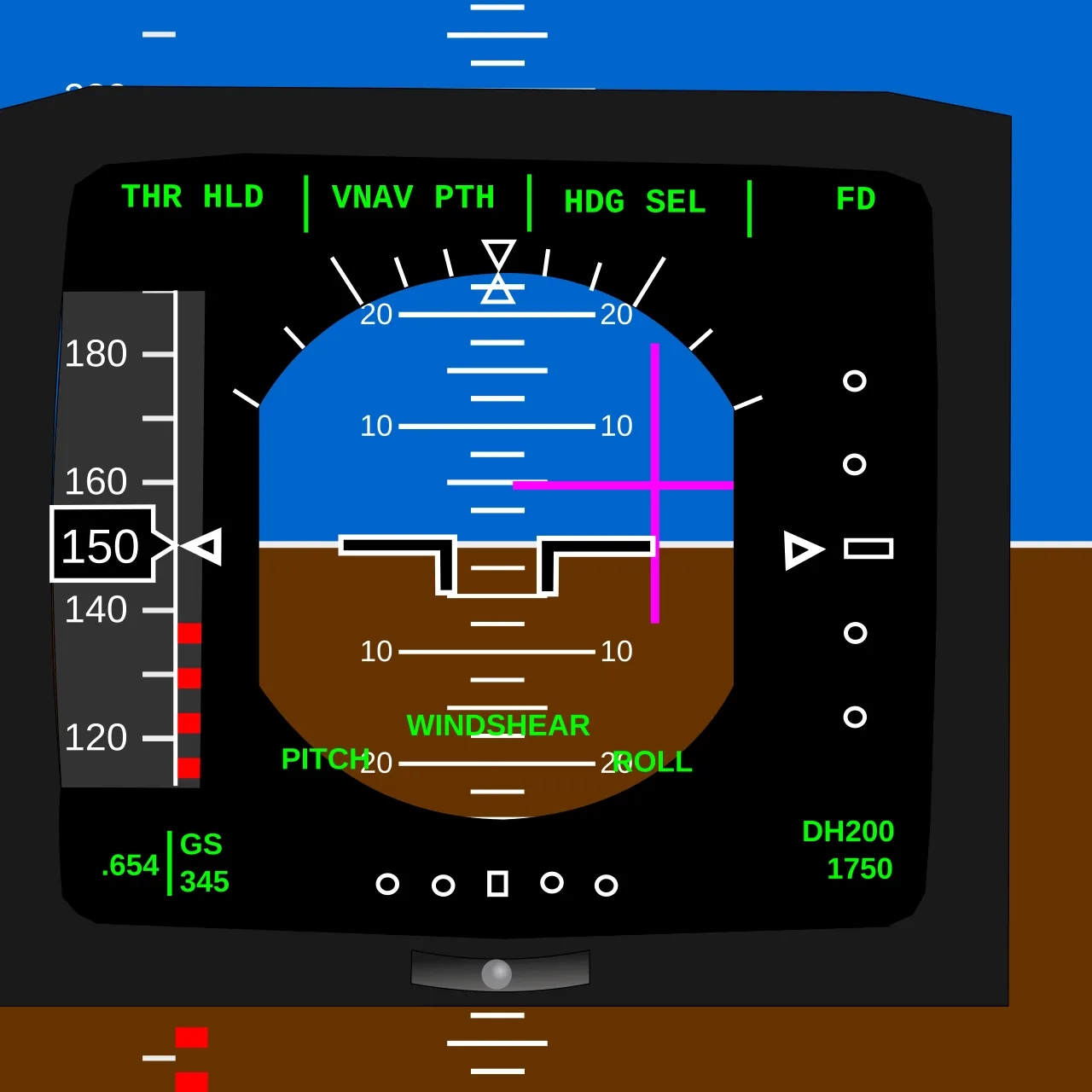

- IFR flight depends upon flying by reference to instruments in the flight deck, with navigation accomplished by reference to electronic signals.
- VFR flight into IMC can lead to spatial disorientation, which is the cause of a significant number of general aviation crashes.
Frequently Asked Questions
Who is Instrument flight rules?
IFR is one of two regulatory frameworks that govern civil aviation operations in the United States, the other being visual flight rules. The FAA established it to give pilots a structured, instrument-based method of flying whenever outside visual references cannot be trusted.
What are Instrument flight rules's powers/role?
IFR authorizes an aircraft to operate in instrument meteorological conditions by relying on cockpit instruments and electronic navigation signals instead of direct sight. In practice, it removes the requirement to see terrain, other traffic, or the horizon.
Why is Instrument flight rules important?
Without IFR, pilots would be grounded the moment visibility falls below three statute miles or clouds close in to within 500 feet below, 1,000 feet above, or 2,000 feet horizontally. IFR keeps the national airspace functional in poor weather by providing a rules-based alternative to visual navigation.
What separates Instrument flight rules from its counterpart, visual flight rules?
VFR demands that the pilot maintain direct visual contact with the ground and other aircraft while meeting specific minimums for visibility and cloud clearance. IFR discards those visual requirements entirely, substituting instrument-based procedures and electronic signal navigation.
