Topographic map

Lore & Background

Topographic maps are characterized by large-scale detail and the quantitative representation of relief features, most commonly through contour lines that connect points of equal elevation. Historically, a variety of methods were used to depict elevation. Traditional definitions require these maps to show both natural and artificial features. They are distinguished from smaller-scale chorographic maps covering large regions, planimetric maps that omit elevations, and thematic maps focused on specific topics. In common usage, however, any map displaying relief via contours is popularly called topographic, even at small scales. A topographic survey is based on systematic observation and published as a map series of two or more sheets. Each series uses a common specification for cartographic symbols and a standard geodetic framework defining the map projection, coordinate system, ellipsoid, and datum. Official topographic maps also adopt a national grid referencing system. The first multi-sheet topographic map series of an entire country was the *Carte géométrique de la France*, completed in 1789. The Great Trigonometric Survey of India, begun in 1802, was notable for accurately determining Himalayan peak heights from distant viewpoints. Topographic surveys were originally prepared for military planning, giving rise to organizations like the United Kingdom’s Ordnance Survey. By the 1980s, centralized printing gave way to digital databases of coordinates, such as the U.S. TIGER initiative and digital elevation models, which facilitated geographic information systems and the Global Positioning System.

Reader's Guide

Topographic maps are defined by their large scale and quantitative depiction of relief, traditionally using contour lines to connect points of equal elevation, though historical methods varied. They are required to show both natural and artificial features. A topographic survey, based on systematic observation, is published as a map series with a common specification for symbols, map projection, coordinate system, ellipsoid, and geodetic datum, often including a national grid referencing system. The discipline of topography itself is broader, encompassing all terrain features, and maps were among the earliest records of such observations. The first multi-sheet topographic map series of a whole country was completed for France in 1789. The Great Trigonometric Survey of India, beginning in 1802, was notable for accurately measuring Himalayan peaks from over one hundred miles away. Military needs drove early surveys, such as those by the United Kingdom’s Ordnance Survey, for battle planning and defensive emplacements. Over time, these map series became national resources for infrastructure and resource planning; in the United States, the mapping function moved to the U.S. Geological Survey in 1879. The International Map of the World initiative, launched in 1913, aimed to map all land at a 1:1 million scale but eventually ended, though its indexing system persists. By the 1980s, centralized printing gave way to digital databases like TIGER, which compiled political borders, roads, and waterways, and digital elevation models from aerial photos and satellite data. These public-domain datasets enabled geographic information systems and enhanced the Global Positioning System, leading to professional and later consumer applications like online mapping and GPS integration with phones and vehicles. Reading topographic maps requires skill to interpret contour lines and infer landforms such as cliffs, ridges, and draws, with training common in orienteering, scouting, and the military.

Did You Know?

• Topographic maps are also commonly called contour maps or topo maps.

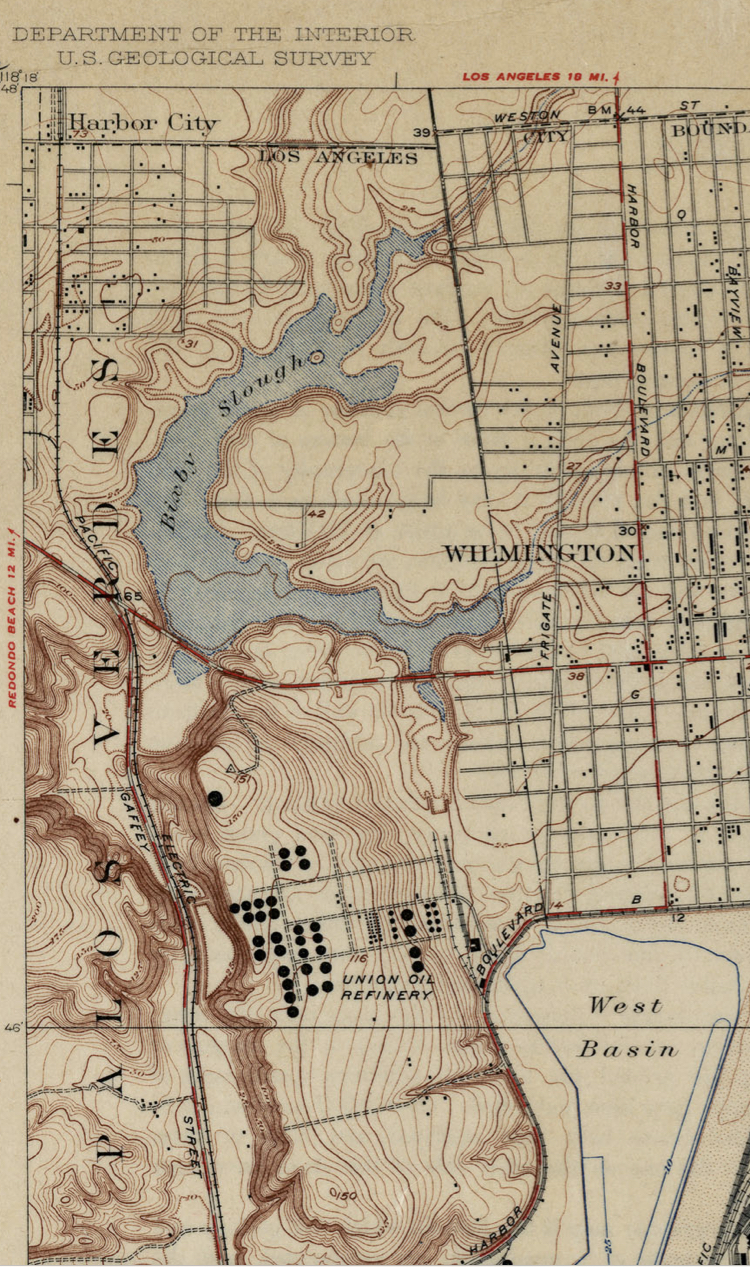

• In the United States, they are often called quads or quadrangles, organized by a strict 7.5-minute grid.
• Most topographic maps were prepared using photogrammetric interpretation of aerial photography with a stereoplotter.
