Dot distribution map

Lore & Background

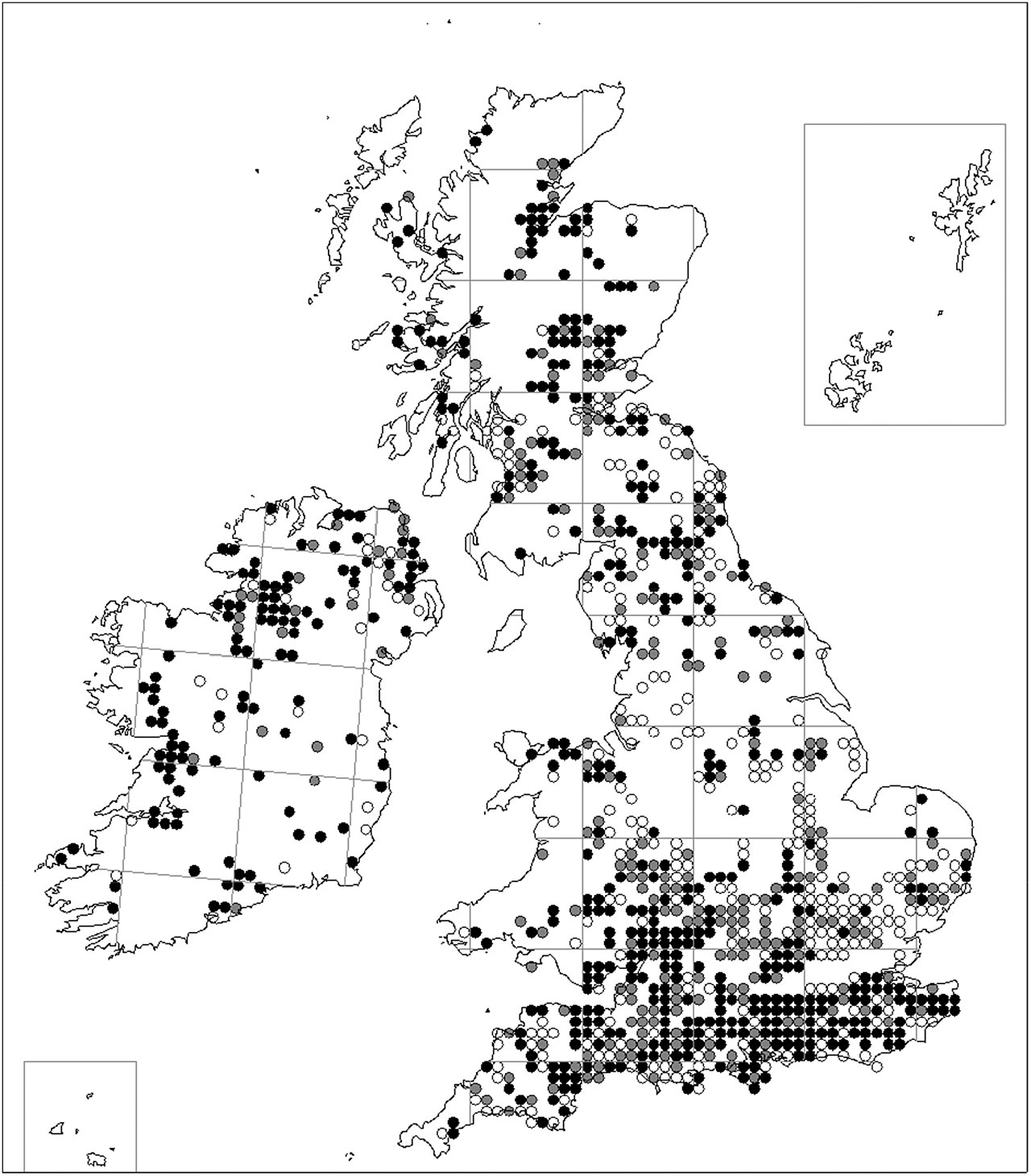

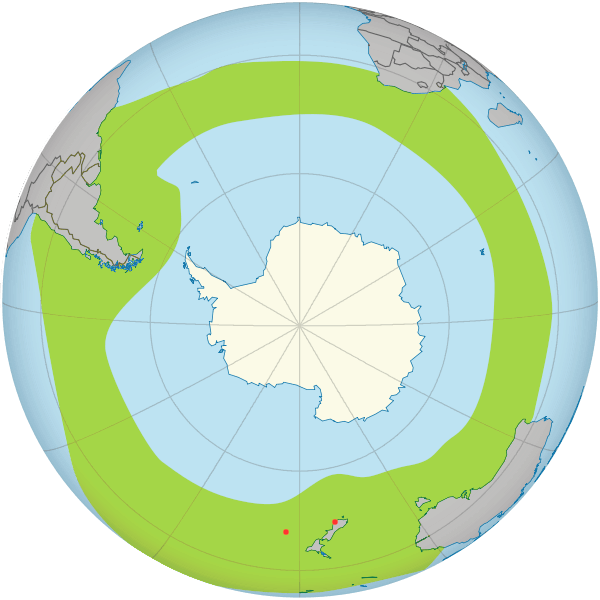

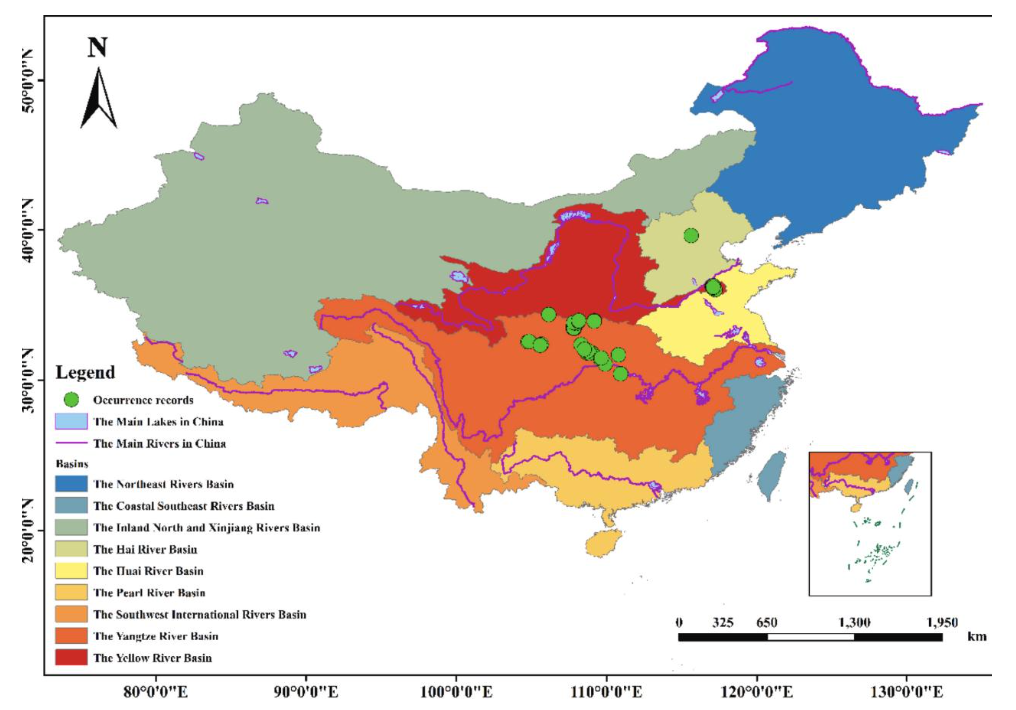

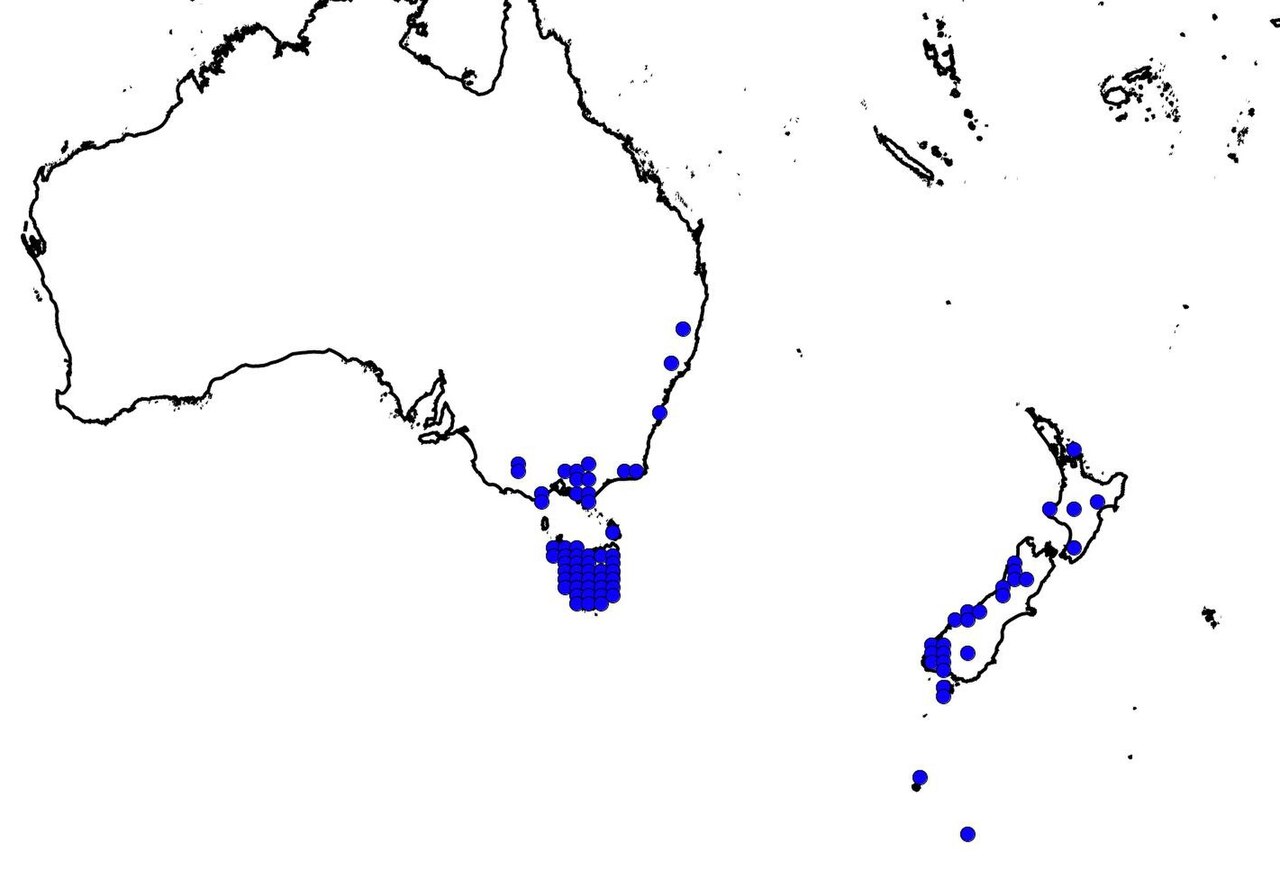

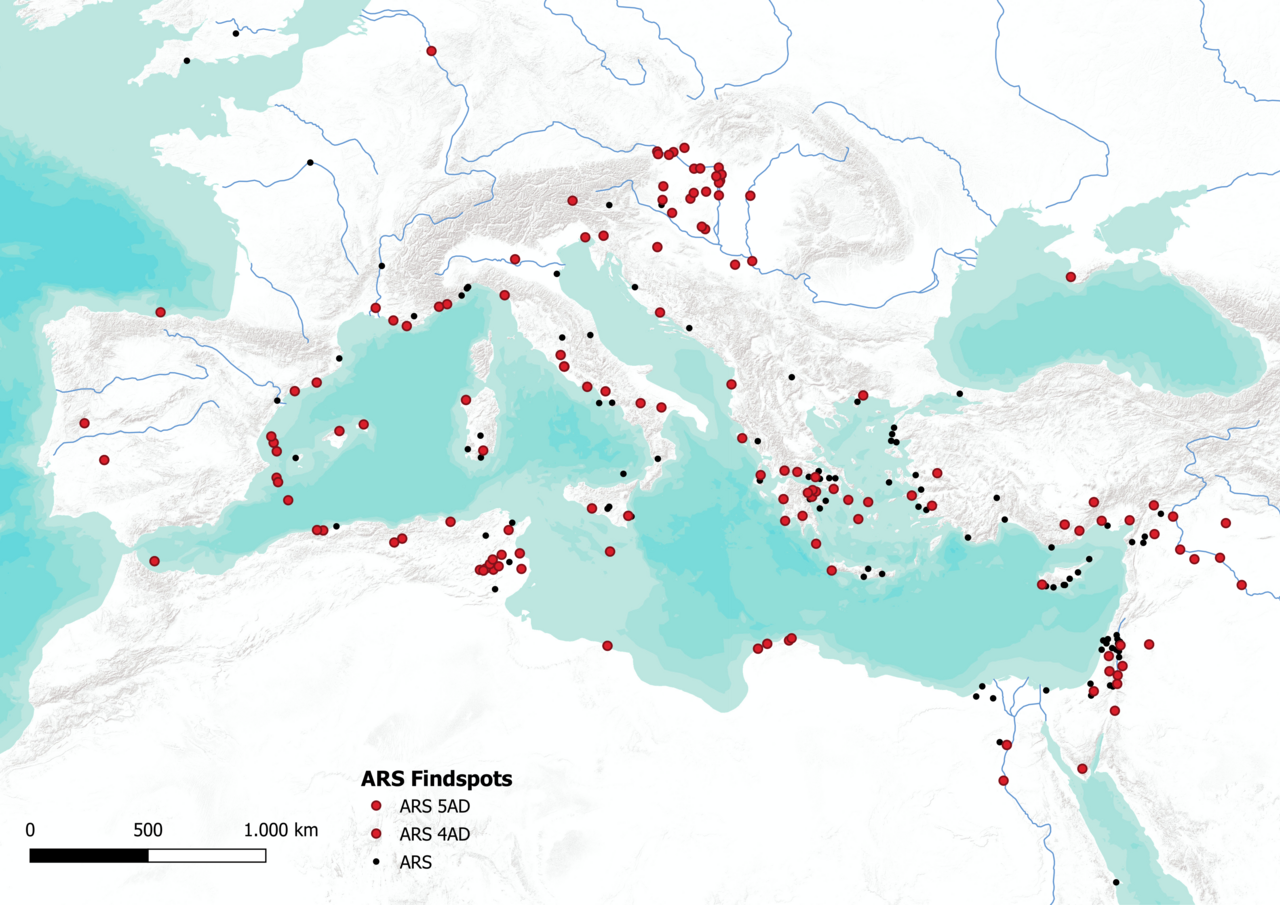

A dot distribution map (also called a dot density map or dot map) is a thematic map that uses point symbols to show the geographic distribution of a large number of related phenomena. The dots can represent the actual locations of individual phenomena or be randomly placed within aggregation districts to represent a number of individuals. Although these two procedures are very different, the general effect is the same: a visual scatter that reveals spatial patterns, especially variations in density. The earliest known district-based dot density map was created in 1830 by Armand Joseph Frère de Montizon, a Franciscan friar, schoolteacher, and printer. His map of population by département in France used one dot for every 10,000 people, with dots spread randomly across each department. This technique, still used today, produces an intuitive display of population density, as higher population levels within a border create a denser pattern of dots. Because the dots are evenly spaced, they do not represent actual locations, illustrating an ecological fallacy where a value for an area generalizes all within it. The point feature map was also reinvented in the mid-19th century, driven by epidemiology. A notable example was an 1849 map by Thomas Shapter of the 1832–1834 cholera outbreak in Exeter, which used different point symbols for cases in each year. John Snow later cited Shapter’s map as inspiration for his own work. Snow’s 1855 map of the 1854 London cholera outbreak showed individual cases stacked at each house location, clearly revealing a concentration around the Broad Street Pump and gaps where other water sources existed. Snow recognized that a map was the most effective tool for communicating spatial patterns of disease.

Reader's Guide

Dot distribution maps are significant as one of the earliest forms of thematic mapping, developed alongside other modern map types in the 19th century. They enabled the visualization of large-scale phenomena such as population density and disease outbreaks, supporting spatial analysis and epidemiology. Two distinct types emerged: one-to-one maps showing actual locations of individual occurrences, and one-to-many maps using randomly placed dots derived from aggregate data. The latter can exhibit an ecological fallacy, as dots are evenly spaced within districts and do not represent actual locations. Despite being less prolific than other thematic maps due to the time needed to create them manually, dot maps were often considered accomplishments worthy of academic publication. Geographic information systems later automated dot placement, though results are often less satisfactory than manual crafting. Recent advancements include dasymetric mapping for more accurate dot placement, scaling dot maps at different zoom levels, and temporal interpolation for animation.

Did You Know?

• One-to-many dot maps can exhibit an ecological fallacy because dots are evenly spaced and do not represent actual locations of individuals.

Origins and Early Pioneers

The concept of using scattered points to convey geographic density emerged during a period of rapid thematic mapping innovation in the 1830s and 1840s, driven by the Industrial era's growing statistical data and scientific curiosity. However, the technique's roots stretch further back. In 1797, Valentine Seaman plotted individual yellow fever cases in New York City, a small-scale precursor that nonetheless marked a significant early use of mapping as an analytical tool in social science and epidemiology, even though his conclusions proved wrong. The first true district-based dot density map appeared in 1830, produced by Armand Joseph Frère de Montizon, a Franciscan friar who also worked as a schoolteacher and printer. His map of French population by département placed dots—each standing for 10,000 people—randomly within administrative borders. The method was essentially identical to what computers still perform today: calculate a count, scatter dots across the area, and let density speak for itself. The even spacing made it clear the dots were not actual addresses, illustrating what we now call an ecological fallacy.

The Cholera Connection and John Snow

Epidemiology served as a powerful catalyst for the point-symbol map throughout the mid-nineteenth century, particularly in the search for cholera's cause. Between 1820 and 1850, cartographers produced maps plotting every individual case in affected regions. Thomas Shapter's 1849 map of the 1832–1834 Exeter outbreak stood out for its use of distinct point symbols to differentiate cases across three separate years. Though Shapter never identified the underlying cause of the clusters he revealed, his work left a lasting imprint; John Snow later acknowledged it as an inspiration. When cholera struck London in 1854, Snow gathered case-by-case location data in Soho, applying early spatial analysis and contact tracing to implicate contaminated water. His 1855 report included a map stacking individual cases at house locations, making the concentration around the Broad Street Pump—and the gaps where alternative water sources existed—visually unmistakable. While historians sometimes overstate the map's direct role in ending the debate, Snow's insight that a map was the most effective way to communicate spatial disease patterns remains genuinely revolutionary.

Standardization and Cartographic Practice

Despite its early invention, the district-based dot density map languished for nearly three decades after Montizon's 1830 publication before being independently reinvented in 1859 by Thure Alexander von Mentzer, a Swedish Army officer. His map of population across Sweden and Norway used dots representing 200 residents each, based on the 1855 Census but clearly adjusted with additional knowledge of where people actually lived. In the decades that followed, dot maps were less commonly produced than other thematic map types, partly because hand-drawing them was labor-intensive; many were considered achievements worthy of standalone academic publication. A hybrid approach emerged in the early twentieth century, combining representative dots for rural areas with proportional circles for major cities. By the mid-twentieth century, the dot density method had been formalized into standardized design guidelines, making it a staple of cartography textbooks and a teachable technique for new mapmakers.

Modern Technology and Future Directions

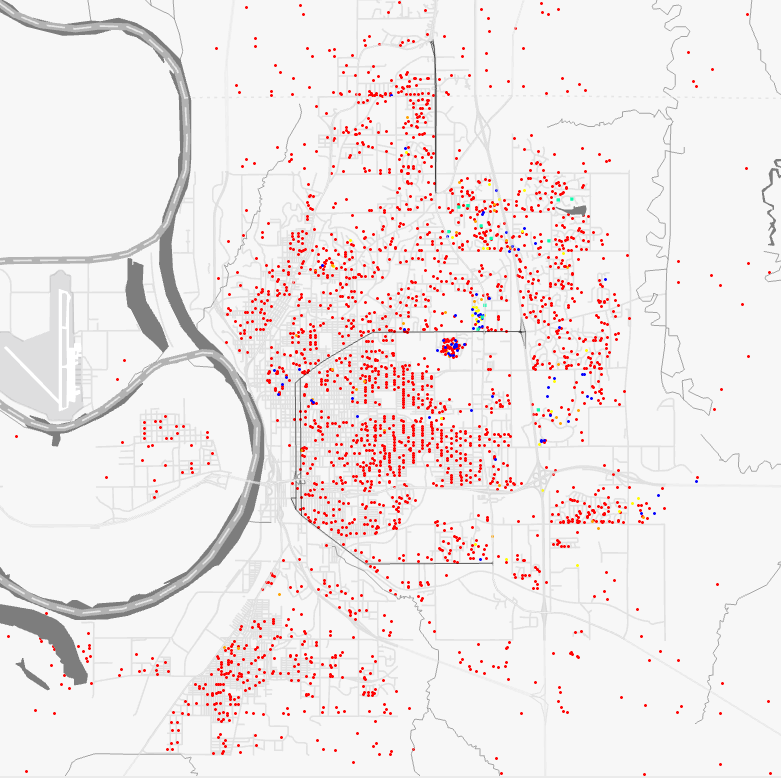

The arrival of geographic information systems transformed dot map production by automating the placement of individual dots, though practitioners often note that computer-generated results can fall short of the carefully crafted manual versions. A more significant technological leap came with the availability of massive geocoded datasets—millions of social media posts, for instance—enabling visualizations of geographic distribution at unprecedented granularity. Recent methodological innovations push the technique further in several directions. Dasymetric mapping techniques now allow dots to be placed more accurately within zones rather than scattered uniformly. Scaling approaches adjust the rate of dots per person at different zoom levels, so the map remains informative whether viewed broadly or up close. Temporal interpolation has made it possible to animate dot maps, showing how distributions shift over time. These advances ensure that a technique born from hand-drawn ink in the nineteenth century continues to evolve alongside the data it represents.
