Akashi Kaikyo Bridge

The longest suspension bridge span in the world until 2022.

Last updated

Akashi Kaikyo Bridge

via Wikipedia: Akashi Kaikyo Bridge · see source

Where it is

Coordinates: 34°36′58″N 135°01′12″E (34.6160, 135.0200) · Open in OpenStreetMap

Coordinates and connected clubs: the infobox of Wikipedia: Akashi Kaikyo Bridge (CC BY-SA 4.0). Map: drawn by Codexery from OpenStreetMap tiles.

The Akashi Kaikyo Bridge is a suspension bridge linking Kobe on Honshu with Awaji Island across the Akashi Strait.[1] The Akashi Kaikyo Bridge, finished in 1998, set a global record upon completion for having the longest central span among suspension bridges, measuring 1,991 meters.[1] This structure belongs to the Kobe-Awaji-Naruto Expressway and spans the Akashi Strait, a waterway noted for powerful tidal flows and harsh weather conditions.[1][2][3]

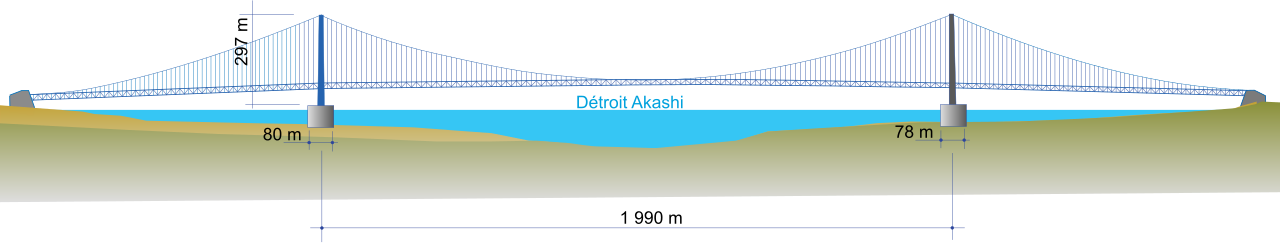

Akashi Kaikyo Bridge
Akashi Kaikyo Bridge. Image: Roulex 45 · CC BY-SA 3.0 · Wikimedia Commons

Geography and history

The bridge crosses the Akashi Strait, which is 4 km wide, between Kobe on Honshu and Iwaya on Awaji Island.[2] A ferry disaster in December 1945 killed 304 people, and the Shiun Maru disaster in 1955 killed 168 people, prompting public calls for a bridge.[3][4] A technical study by the Japan Society of Civil Engineers in 1967 concluded that design and construction conditions would be extremely severe.[5] The Great Hanshin Earthquake in January 1995 moved the towers, increasing the central span by 1 m, but did not cause substantial damage.[6][7]

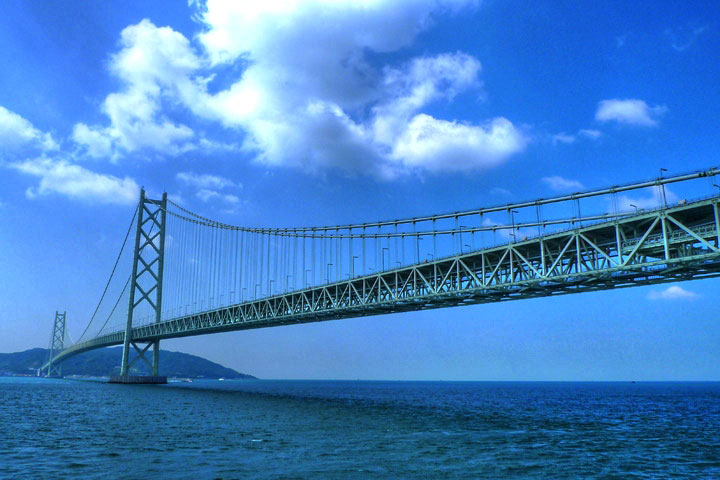

Akashi-Kaikyo Bridge, Japan
Akashi-Kaikyo Bridge, Japan. Image: studio IRONY · CC BY 3.0 · Wikimedia Commons

Ferries were the sole means of crossing the strait prior to the bridge's construction.[3] The Japanese government started creating plans for a crossing after a 1955 disaster involving two ferry sinkings that killed 168 people.[4] The Kobe municipal government initiated bridge investigations in 1957, and a national ministry assessment followed in 1959.[5] Work on the bridge started in May 1988, with more than 100 contractors participating.[6]

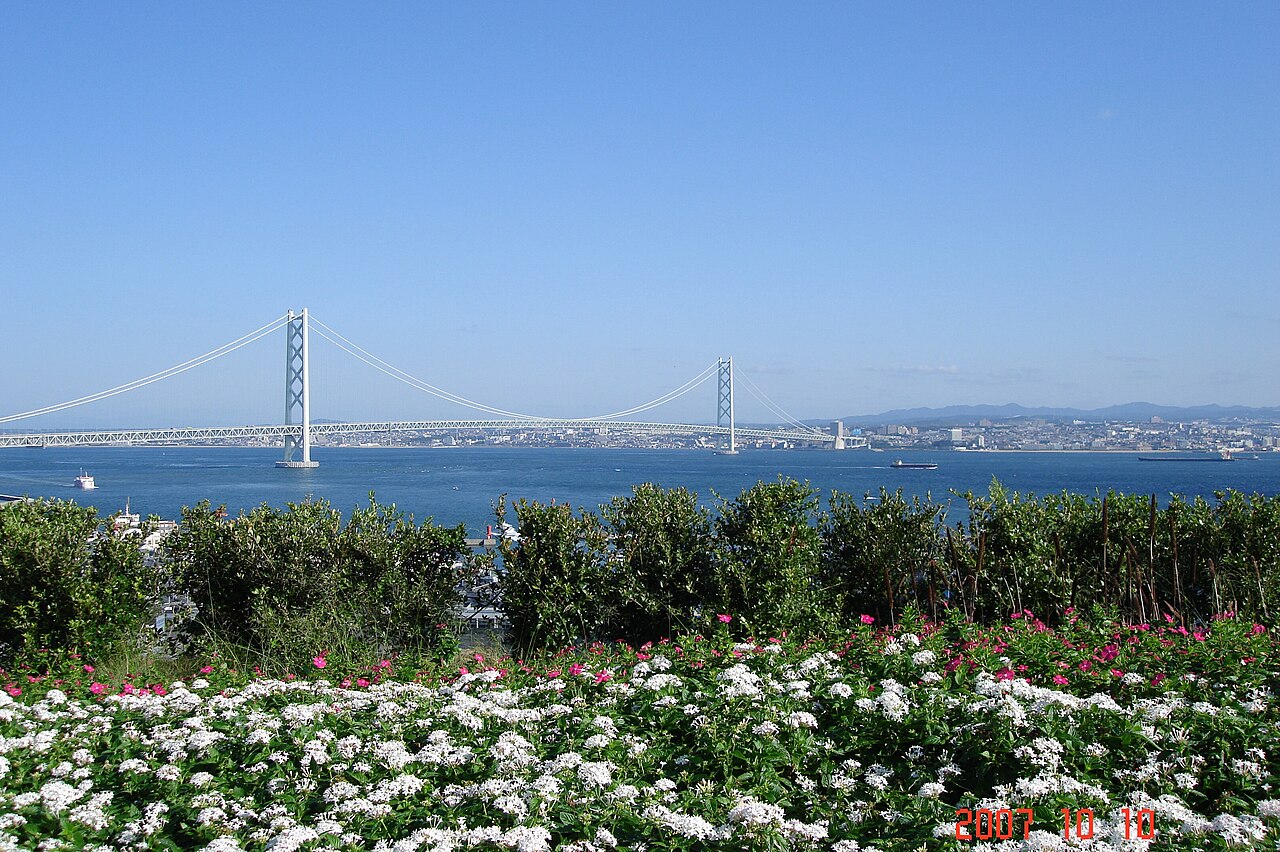

Akashi-Kaikyo-Oohasi - panoramio
Akashi-Kaikyo-Oohasi - panoramio. Image: hajime · CC BY 3.0 · Wikimedia Commons

Traffic began using the bridge on April 5, 1998, following an opening ceremony led by Crown Prince Naruhito and Crown Princess Masako.[6]

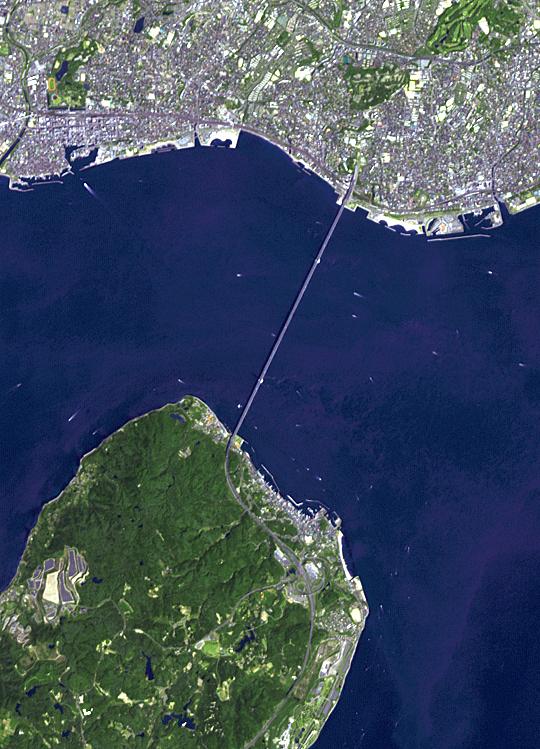

Akashi-Kaikyo Bridge, Japan (ASTER)
Akashi-Kaikyo Bridge, Japan (ASTER). Image: NASA/METI/AIST/Japan Space Systems, and U.S./Japan ASTER Science Team · Public domain · Wikimedia Commons

What the cited sources add

The bridge's substructures include two main piers and two anchorages, with the Kobe-side anchorage using an underground circular retaining wall filled with roller-compacted concrete.[2] Scour protection around the caissons includes a 2 m filtering layer covered with 8 m of riprap.[8] Each anchorage consumed 350,000 tonnes of concrete, while the steel cables incorporate 300,000 kilometers of wire.[3][9] The project's total cost was roughly ¥500 billion (US$3.6 billion), with a toll of 2,300 yen and an average daily traffic of about 23,000 cars.[10][11]

Akashi-Kaikyo Bridge, Maritime 360-degree
Akashi-Kaikyo Bridge, Maritime 360-degree. Image: AsPJT · CC0 · Wikimedia Commons

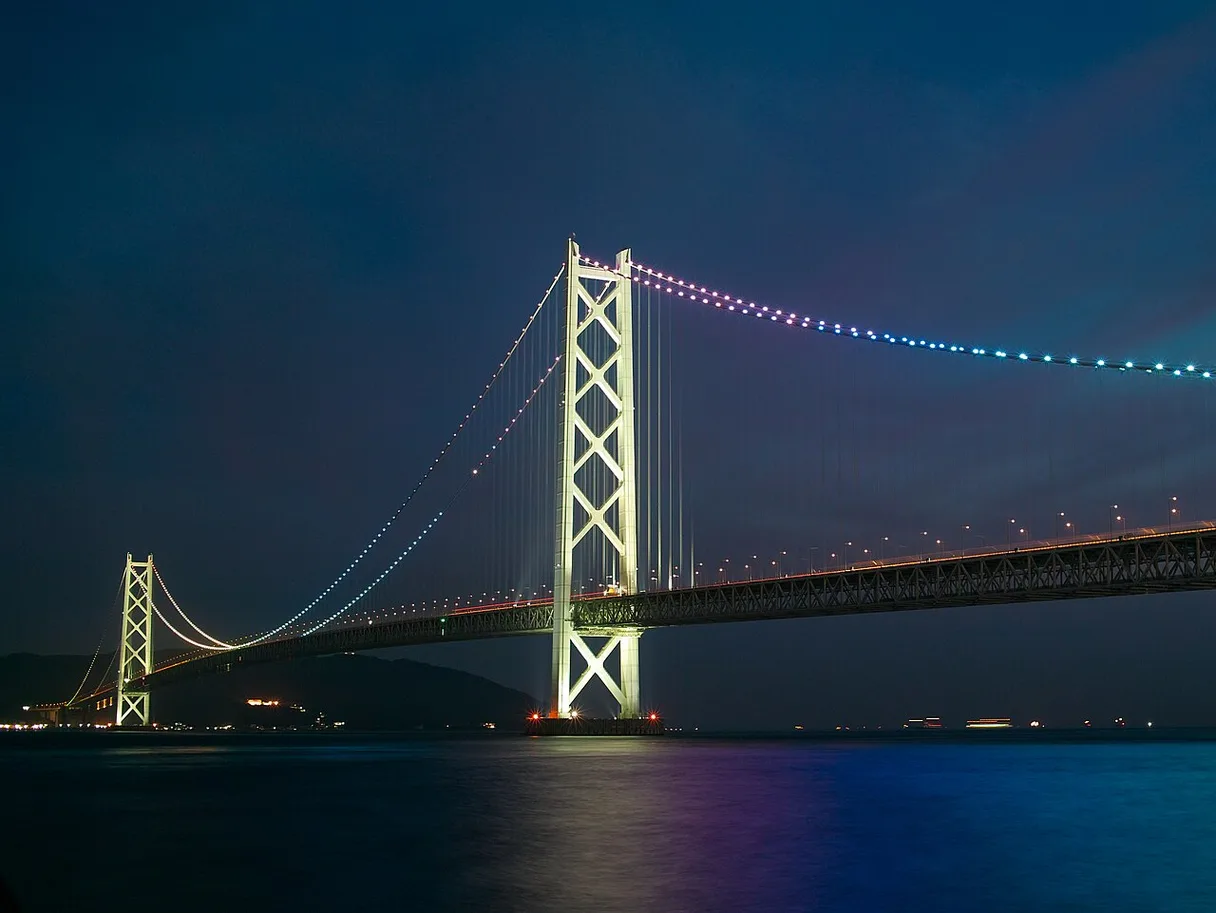

The bridge features 1,737 illumination lights that use RGB color technology to produce various lighting patterns for special events.[12]

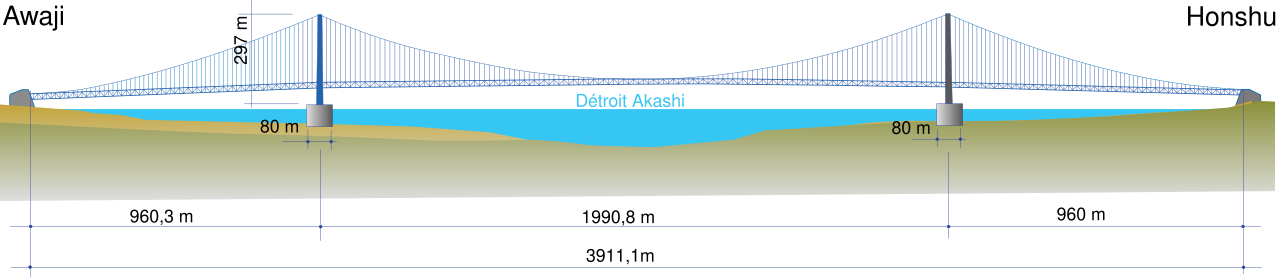

Akashi-Kaikyo Bridge
Akashi-Kaikyo Bridge. Image: Roulex 45 · CC BY-SA 3.0 · Wikimedia Commons
