Luminous flux

Lore & Background

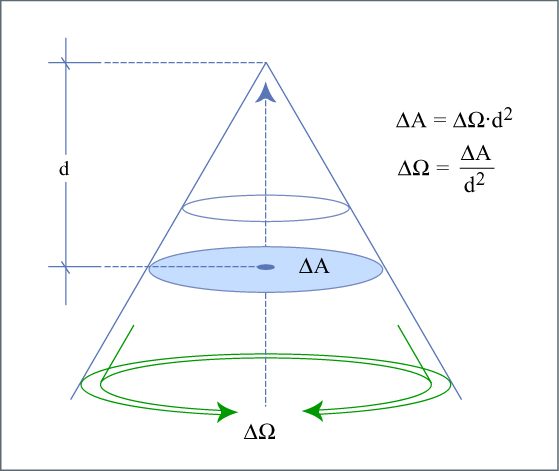

Luminous flux is a photometric quantity that measures the perceived power of light, distinct from radiant flux, which quantifies the total power of all electromagnetic radiation, including infrared and ultraviolet wavelengths. The defining characteristic of luminous flux is its adjustment for human visual sensitivity: it is calculated by weighting the power at each wavelength of light according to the luminosity function, a standardized model of the eye’s response to different colors. Only wavelengths within the visible spectrum contribute to luminous flux; light outside this band is excluded. The ratio of luminous flux to radiant flux is termed luminous efficacy. The SI unit of luminous flux is the lumen (lm), defined as the luminous flux produced by a light source emitting one candela of luminous intensity over a solid angle of one steradian. In other unit systems, luminous flux may be expressed in units of power. Luminous flux is commonly used as an objective measure of the useful light emitted by a source, such as a light bulb, and is often reported on packaging, though it is not always prominently displayed. Consumers use it to compare the apparent amount of light different bulbs produce, with a higher ratio of luminous flux to consumed power indicating greater efficiency. However, luminous flux does not directly indicate subjective brightness, which varies with distance and angular spread. Measurement of luminous flux for artificial sources typically employs an integrating sphere or a goniophotometer equipped with a photometer or spectroradiometer. Luminous flux is distinct from luminous intensity: while flux measures total light output in lumens, intensity measures beam brightness in candelas in a specific direction. For example, a one-lumen bulb focused into a one-steradian beam yields one candela; narrowing the beam to half a steradian increases intensity to two candelas, but the total luminous flux remains unchanged.

Reader's Guide

Luminous flux is often used as an objective measure of the useful light emitted by a light source, typically reported on packaging for light bulbs. Consumers commonly compare luminous flux of different bulbs to estimate apparent light output, and a bulb with a higher ratio of luminous flux to consumed power is more efficient. Luminous flux is not used to compare brightness, as brightness is subjective and varies with distance and angular spread. Measurement of artificial light sources is typically done using an integrating sphere or a goniophotometer with a photometer or spectroradiometer. Luminous flux (lumens) measures total light output, while luminous intensity (candelas) measures beam brightness in a particular direction; changing optics can alter intensity but not flux.

Did You Know?

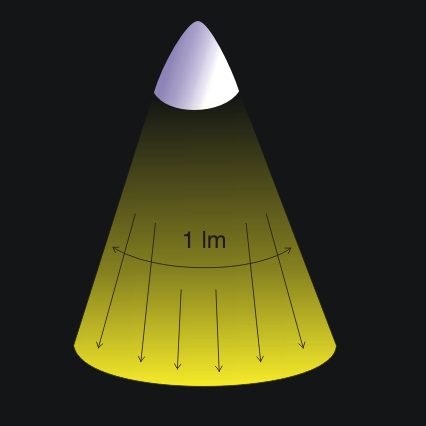

• One lumen is defined as the luminous flux produced by a source emitting one candela over one steradian.
• Luminous flux is a weighted sum of power at all wavelengths in the visible band only.
• The ratio of total luminous flux to radiant flux is called luminous efficacy.
• Luminous flux is typically measured using an integrating sphere or a goniophotometer.

Definition and Core Mechanism

A goniophotometer is a specialized photometric instrument designed to capture how light spreads directionally from sources, fixtures, optical media, or reflective surfaces. At its heart sits a goniometer that tracks angular position using spherical coordinates, allowing the device to record the full angular distribution of transmitted, emitted, or reflected light. This capability is essential because most real-world light sources do not radiate uniformly in all directions. When the resulting data is expressed in angular coordinates, it is commonly called the luminous intensity distribution, though practitioners sometimes use the term beam pattern—a label that can also describe the light pattern projected onto a surface oriented perpendicular to the beam axis. A closely related instrument, the gonioradiometer, performs the same angular measurements but operates on a radiometric basis rather than a photometric one, meaning it is not weighted to match human visual sensitivity. This distinction matters when the goal is to characterize radiant power rather than perceived brightness.

Practical Applications and Color Characterization

The directional distribution of light carries significant weight in fields such as architectural lighting design and automotive headlamp engineering, where controlling where light goes is as important as how much is produced. A goniophotometer serves as the primary tool for quantifying this distribution. Beyond basic luminous flux and intensity measurements, the instrument can be fitted with color sensors to reveal additional characteristics of a source, including the spatial distribution of correlated color temperature and color uniformity across the beam. Another advanced application involves determining what is known as an indicatrix of diffusion or a scattering indicatrix. This is a three-dimensional surface, plotted in polar coordinates, that maps the angular distribution of relative radiant intensity, luminous intensity, radiance, or luminance produced when a medium scatters or transmits an incident beam of optical radiation. For sources that are considerably smaller than the goniophotometer itself, the instrument can still accurately capture the full luminous intensity distribution, making it versatile across a wide range of source sizes.

Structural Classifications: Types A, B, and C

The Illuminating Engineering Society mirrors this guidance in its ANSI/IES LM-75-19 standard. Type A features a fixed horizontal axis with the vertical axis mounted upon it, both oriented perpendicular to the source's main output direction. Type B inverts this arrangement, fixing the vertical axis and attaching the horizontal one, again both perpendicular to the output axis. Both A and B employ a double-column structure, making them well suited to measuring grille lamps where the lamp's symmetry axis aligns coaxially with the rotating supporter's horizontal axis. Type C, by contrast, uses a single-column layout created by removing the auxiliary column from the double-column design. It fixes a vertical axis perpendicular to the measurement line while the horizontal axis runs parallel to the source's main output direction, a configuration applied to tube lamps, spot lamps, and similar devices.

Imaging-Based Measurement and the Data Ecosystem

A newer approach to capturing luminous intensity distributions replaces the traditional rotating detector with an imaging system. In this camera-based method, a fisheye-lens camera is mounted in a port of an integrating sphere, recording the intensity data for every emission angle simultaneously. This instantaneous capture eliminates measurement uncertainty introduced by temporal effects such as source drift or temporal modulation, and it dramatically shortens the time needed to obtain a complete distribution. Because the entire angular field is acquired in a single exposure, the result is also independent of the angular resolution step chosen for the measurement. The broader ecosystem surrounding goniophotometry includes standardized data file formats like EULUMDAT, which structures luminaire radiometric data for exchange, as well as related instruments and concepts such as the goniometer, the integrating sphere, and the general discipline of goniophotometry. Together, these tools and standards form a coherent framework for characterizing how light behaves in three-dimensional space.
