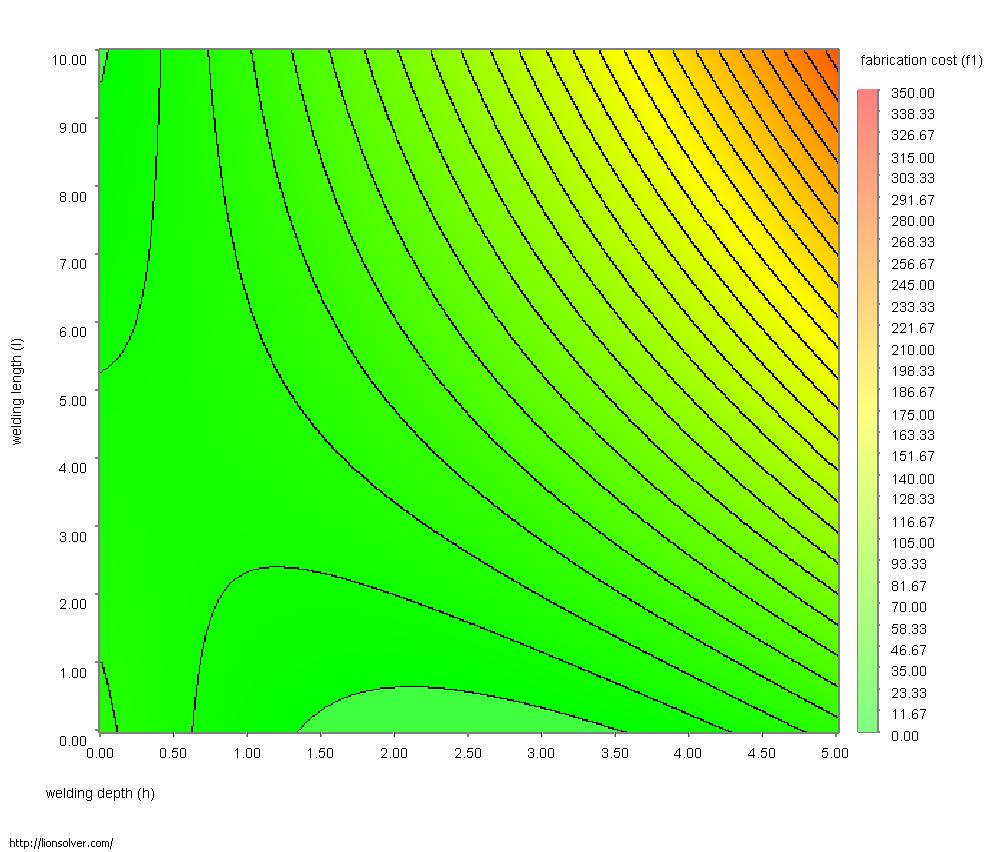

A contour line joins points of equal value on a map, such as points of equal elevation above mean sea level.[1][2] Contour lines may be traced on a visible three-dimensional model or interpolated from estimated surface elevations.[3] By examining how these lines are arranged, someone viewing a map can deduce how steeply a measured quantity changes and approximate its value at particular locations.[3]
Geography and history
The Dutch engineer Nicholas Cruquius drew the bed of the river Merwede with lines of equal depth at 1-fathom intervals in 1727.[4] Philippe Buache used isobaths at 10-fathom intervals on a chart of the English Channel prepared in 1737 and published in 1752.[4] Domenico Vandelli used contour lines to describe a land surface in a 1746 map of the Duchy of Modena and Reggio.[5] The term lignes isothermes was coined by Alexander von Humboldt, who published the first map of isotherms in Paris in 1817.[6]
A 1584 chart of the Spaarne river near Haarlem, created by the Dutch cartographer Pieter Bruinsz, contains what is currently the earliest known example of an isobath—a line marking constant water depth.[4] Edmond Halley, in 1701, produced a chart where he employed lines of identical magnetic variation.[4] J. L. Dupain-Triel's 1791 map of France featured contour lines spaced 20 meters apart.[5] The Ordnance Survey began routinely including contour lines on its maps of Great Britain and Ireland around 1843.[7]
Nautical charts from Russia in 1834 and from Britain in 1838 were among the first to regularly employ isobaths.[7] Thomas Hankins has stated that the graphical innovations of William Playfair, a Scottish engineer, had a significant impact on Alexander von Humboldt's creation of the isotherm.[6]
What the cited sources add
The Dictionary.com definition states a contour line joins points of equal elevation on a surface and that the change in elevation between contour lines is the contour interval.[2] Edward J. Hopkins explains that surface analysis charts contain isobars, which are lines connecting all points having the same sea level corrected barometric pressure.[8] Hopkins notes that once isobars are drawn, one can immediately locate regions of high and low atmospheric pressure.[8] Hopkins describes that a trough of low pressure may be identified by a thick brown dashed line running along its axis.[8]
Hopkins states that fronts are classified according to their movement and can be represented on a surface analysis chart with color-coded lines.[8] The Dictionary.com entry gives an example of a contour line arcing 2 feet below typical low tide.[2]
