Aircraft fairing
Structures that smooth airflow and reduce drag on aircraft.
Last updated

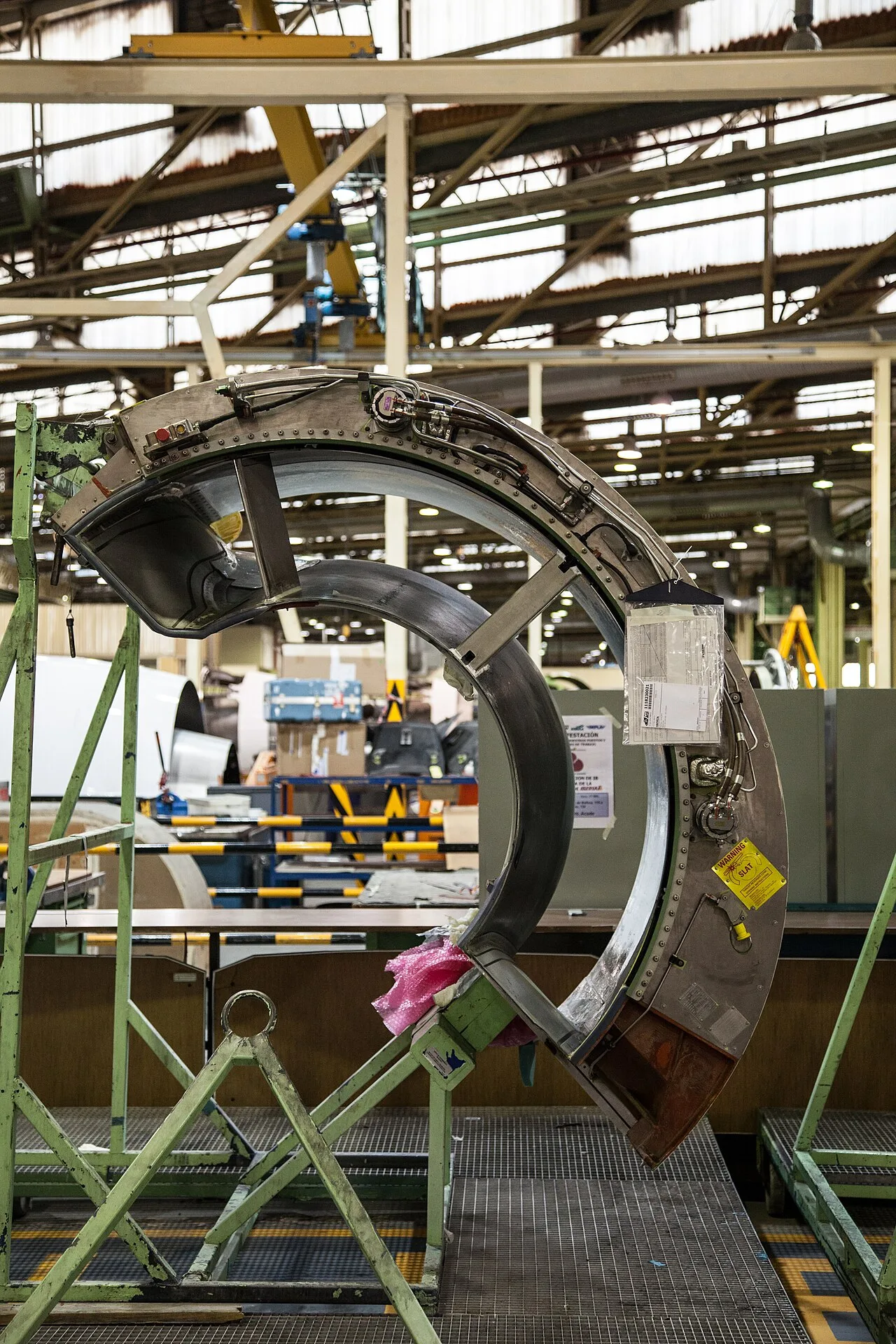

Kiko Alario Salom · CC BY 2.0
An aircraft fairing is a component designed mainly to create a smooth surface and lower drag. These coverings fill in gaps and spaces between different parts of the plane, cutting down on form drag and interference drag while also making the aircraft look better. Common fairing locations on aircraft include: - Also known as a ventral fairing, this sits on the fuselage’s underside between the main wings. It may also house extra cargo or fuel tanks. - Called a cockpit pod, this protects the crew on ultralight trikes.
Usually made of fiberglass, it can include a windshield. - These fairings smooth airflow at the tips of the elevator and stabilizer. - They reduce drag at low angles of attack but also lower the stall angle, so their use on control surfaces depends on the specific application. - These smooth airflow where two parts meet, such as where the wing joins the fuselage. - Fairings here reduce drag at the connection points. - These enclose the flap operating mechanism when the flap is retracted. They open as the flap lowers and may pivot to accommodate sideways movement of the mechanism on swept-wing designs. - Protects and streamlines the propeller hub. - Fairings at these points reduce drag. - These streamline the rear of the fuselage by removing the flat base area, which causes base drag. - The wing root is often faired to cut interference drag between wing and fuselage. On the top and bottom, this involves small rounded edges to reduce surface and friction drag. At the leading and trailing edges, it uses much larger tapers to smooth out pressure differences—high pressure at the edges, low pressure on the wing top and around the fuselage. - Often shaped in complex ways to reduce vortex formation and thus drag, especially at low speeds. - Called wheel pants or speed fairings in North America, and wheel spats or trousers in the UK (the latter enclosing both the wheel and landing gear leg).
Quick Facts
- Primary function
- produce a smooth outline and reduce drag
- Drag types reduced
- form drag and interference drag
- Common materials mentioned
- fiberglass (for cockpit fairings)
Facts from the source article.
Background
Aircraft fairings are covers for gaps and spaces between parts of an aircraft, reducing form drag and interference drag while improving appearance. They are commonly found on many parts of an aircraft, including the belly, cockpit, elevator and horizontal stabilizer tips, fin and rudder tips, fillets at junctions, fixed landing gear junctions, flap tracks, spinners, strut-to-wing and strut-to-fuselage junctions, tail cones, wing roots, wing tips, and wheels on fixed gear aircraft.
Specific fairings serve distinct purposes: belly fairings, also called ventral fairings, are located on the underside of the fuselage between the main wings and can cover additional cargo storage or fuel tanks. Cockpit fairings, or cockpit pods, protect the crew on ultralight trikes and are commonly made from fiberglass, sometimes incorporating a windshield. Wheel fairings, known as wheel pants or speed fairings in North America and wheel spats or trousers in the United Kingdom, are a trade-off: they increase frontal and surface area but provide a smooth surface and faired nose and tail for laminar flow, reducing turbulence from the round wheel and gear legs, and also prevent mud and stones from being thrown upwards.
Aerodynamic Purpose and Core Function
An aircraft fairing is fundamentally an aerodynamic problem-solving structure. Its core mission is to create a continuous, smooth outer surface where the aircraft's various components would otherwise create gaps, steps, and discontinuities. By eliminating these irregularities, fairings tackle two specific categories of drag: form drag, which arises from the blunt shapes and gaps between parts, and interference drag, which occurs where two separate surfaces meet and their boundary layers interact chaotically.
Beyond pure performance, fairings also serve a cosmetic role, giving the aircraft a cleaner, more unified visual profile. In essence, a fairing is the aerodynamic glue that makes a collection of separate structural elements behave as though they were a single, flowing shape. Without them, the turbulent eddies and pressure disruptions at every junction would sap efficiency and increase fuel consumption across the entire flight.
Pervasive Placement Across the Airframe
The sheer number of locations where fairings appear on an aircraft reveals just how pervasive the drag problem is. From the belly fairing, also known as a ventral fairing, sitting beneath the fuselage between the main wings, sometimes concealing extra cargo bays or fuel tanks, to the small rounded edges along wing roots that ease the transition between wing and fuselage surfaces, fairings are everywhere. Fillets smooth the airflow right at the junction where two major components meet. Strut end fairings handle the drag created where struts connect to wings or fuselage.
Tail cones eliminate the blunt rear base area of the fuselage, which is a notorious source of base drag. Even the propeller hub gets its own dedicated fairing, the spinner, which both protects the hub and streamlines the front of the aircraft. Each of these placements addresses a distinct aerodynamic disruption, and together they form a comprehensive strategy for taming the turbulence that raw structural geometry would otherwise generate.
Engineering Trade-offs and Design Complications
Not every fairing is a simple win. The most revealing examples are those where adding a fairing introduces a new problem. Fin and rudder tip fairings, for instance, effectively cut drag at low angles of attack, but they simultaneously reduce the stall angle of the control surface. This means the decision to fair a control surface tip is not universal; it depends entirely on the specific application and the flight regime the aircraft is designed for.
Flap track fairings present a different kind of complexity: they must fully enclose the flap operating mechanism when the flap is retracted, yet they must open and sometimes pivot to accommodate the sideways travel of the extending mechanism, a challenge that is especially pronounced on swept-wing configurations. Wheel fairings on fixed-gear aircraft represent yet another compromise. They increase the frontal and surface area of the wheel assembly, which in principle adds drag, but they provide a smooth, faired envelope that promotes laminar flow and tames the turbulence generated by the round wheel, its gear legs, and brakes. The net effect is a trade-off that designers must carefully balance.
Protection, Utility, and Regional Identity
Beyond their aerodynamic role, many fairings serve critical protective and practical functions that are easy to overlook. Cockpit fairings, often called cockpit pods, shield the crew of ultralight trikes and are typically constructed from fiberglass, sometimes incorporating a windshield for additional protection. Wheel fairings, known by a colorful array of regional names including wheel pants, speed fairings in North America, and wheel spats or trousers in the United Kingdom, the latter enclosing both the wheel and the landing gear leg, do more than smooth airflow. They prevent mud, stones, and debris from being flung upward against the wings or fuselage, and on pusher-configured aircraft, they keep foreign objects out of the propeller.
The belly fairing, meanwhile, can house additional cargo storage or fuel tanks, turning a purely aerodynamic structure into a functional compartment. Even the spinner, while primarily a streamlining device for the propeller hub, also serves a protective role. These practical duties remind us that a fairing is never just about shape; it is a multi-purpose engineering element.
